Clamp System Pitched Roof Mounting System is not only suitable for standard roofs, but also suitable for special tile types. It has the advantages of high adaptability and good mounting strength.
Item No :
SR ROOF 02Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen,ChinaShipping Port :
XiamenLead Time :
7-15 days|
Brand： |
SR SOLAR |
|
Place of Origin： |
Xiamen,China |
|
Material： |
AL6005-T5 |
|
Warranty: |
10 years |
|
Service Life： |
25 years |
|
Snow Load: |
1.4Kn/㎡ |
|
Wind Load: |
60m/s |
|
Certificate: |
ISO9001/SGS |
|
Mounting Type: |
Solar Roof Mounting |
|
Standard: |
JISC 8955-2017 |
TYPES:

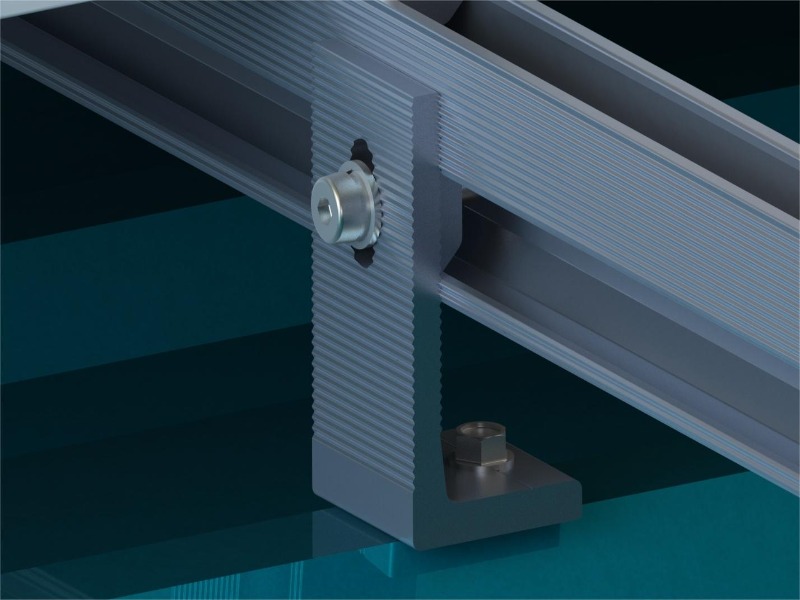

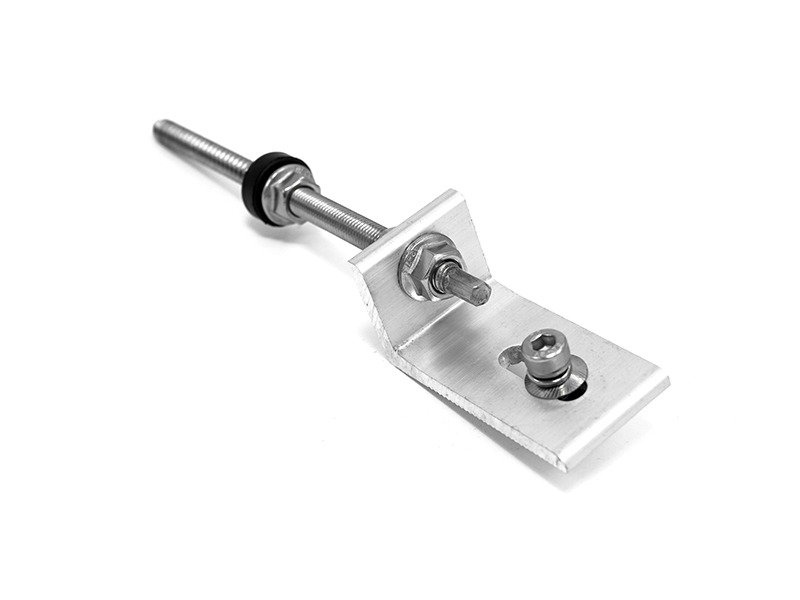

①Corrugated or Trapezoidal Sheet Metal L-feet Hanger Bolt
The L-feet hanger bolts are a key component of solar roof mounting systems and are specifically designed to be installed on corrugated or trapezoidal sheet metal roofs. Hanger bolts are suitable for mounting on wooden beam and steel beam.
The L-feet hanger bolts are used to securely fasten solar panel racks to the roof structure. Hanger bolts typically have a threaded end which allows the L-feet to be attached, providing a secure, adjustable platform for solar panel mounting rails. This design ensures a strong hold while providing adjustability for optimal solar panel orientation and angle.

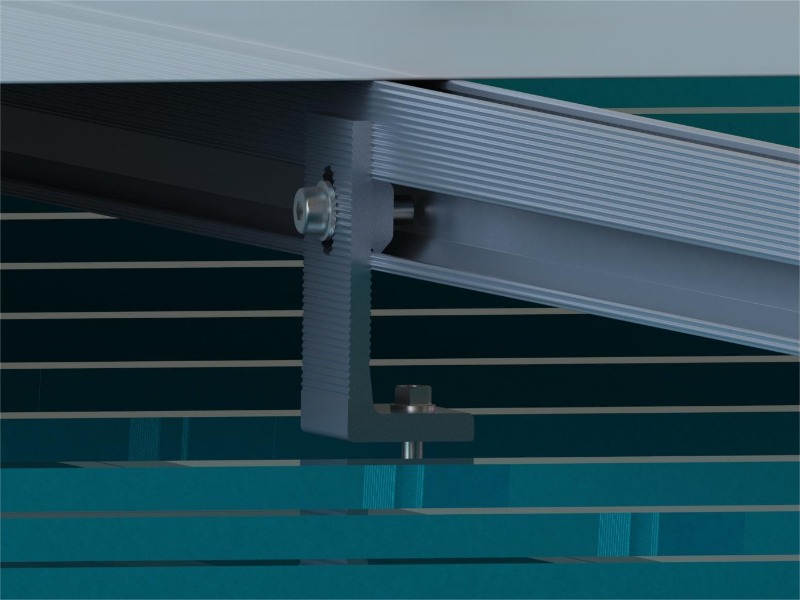

②Solar Roof Mounting System with L feet and self-tapping screws
The Solar Roof Mounting System with L feet and self-tapping screws is a fantastic way to install solar panels on your roof. The L feet provide stability and support, while the self-tapping screws make installation a breeze. This system ensures a secure and reliable setup for your solar panels, allowing them to harness the power of the sun efficiently. It's a game-changer for eco-friendly energy solutions!

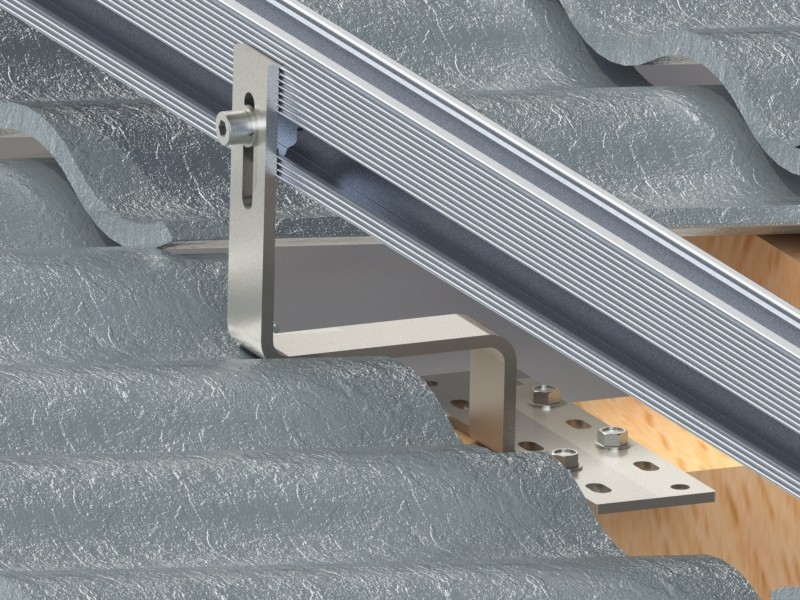

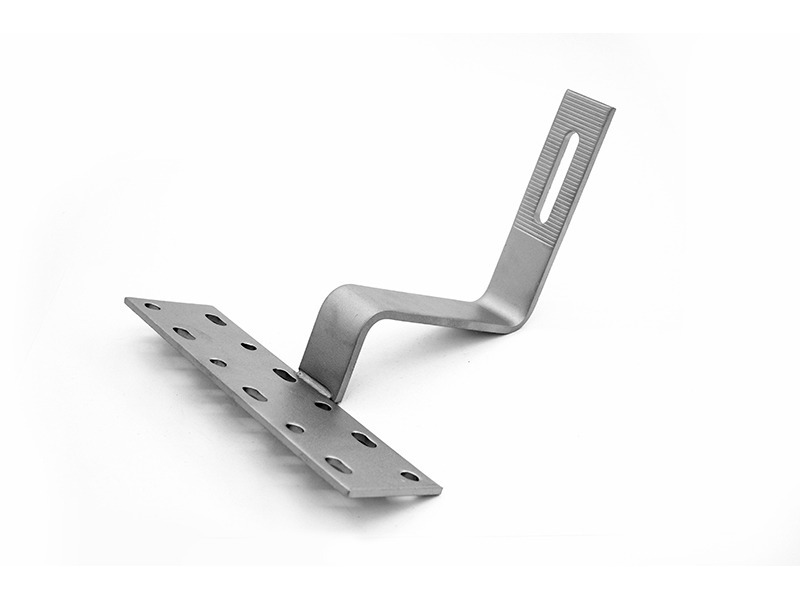

③Trapezoid Roof Hooks
Trapezoid Roof Hooks are a great addition to a solar roof mounting system. They offer several advantages. Firstly, they are specifically designed to fit trapezoidal roof profiles, ensuring a precise and secure fit. This enhances the stability and safety of the solar panel installation. Secondly, the trapezoid roof hooks are made of high-quality materials that are resistant to corrosion and weathering, ensuring long-lasting durability. Lastly, these hooks provide a flexible and adjustable mounting solution, allowing for optimal positioning and orientation of the solar panels to maximize sun exposure. They're definitely a top choice for trapezoidal roofs!

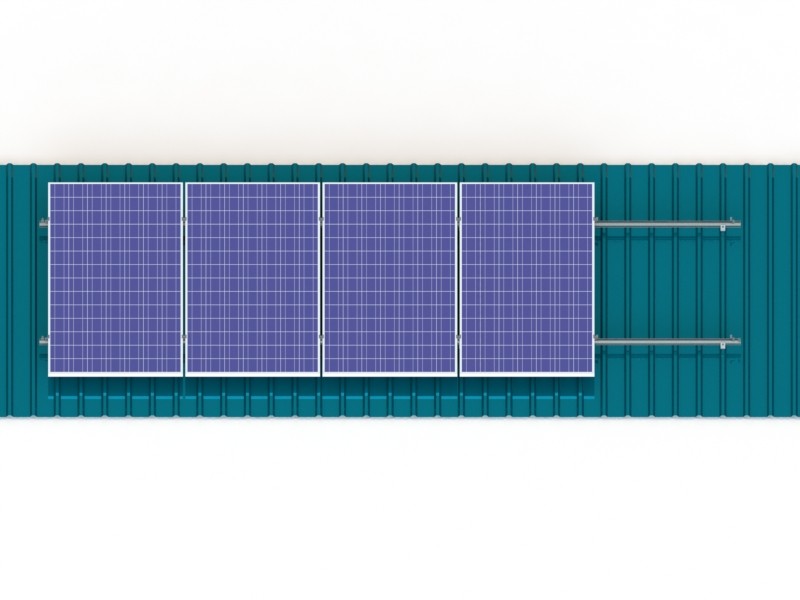

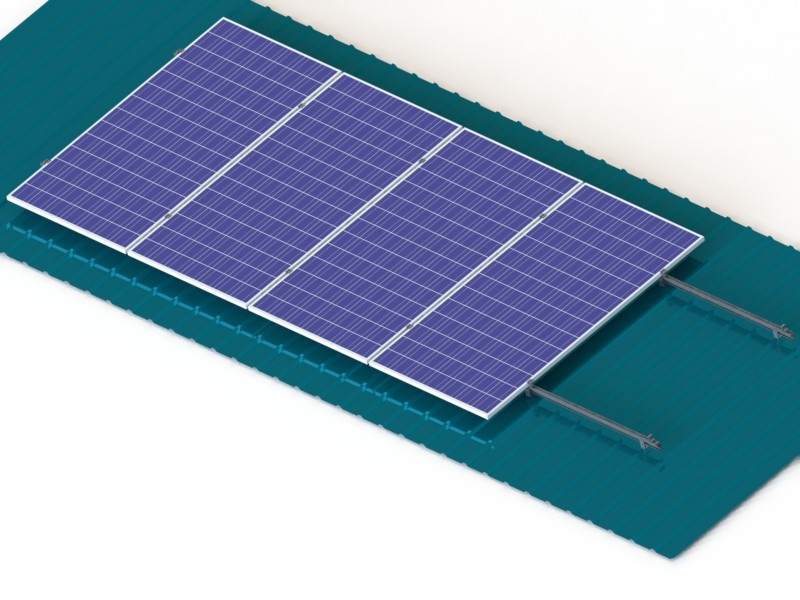

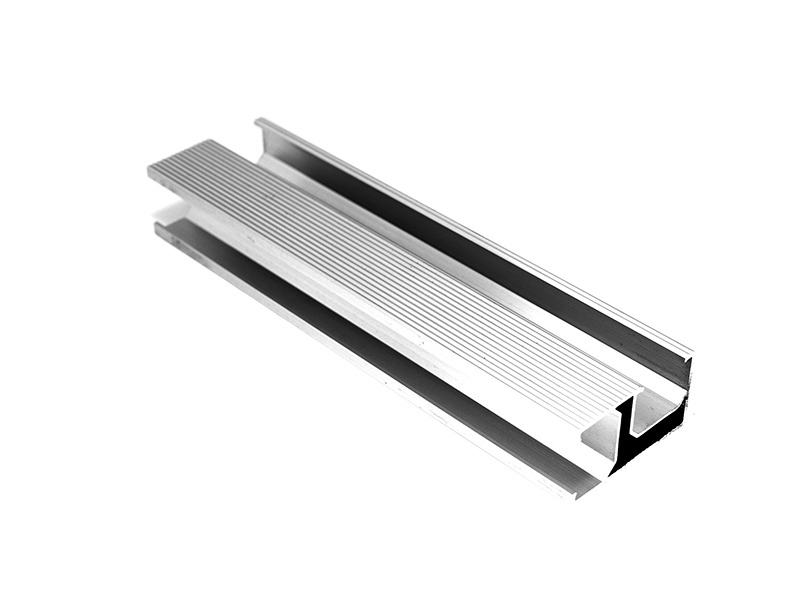

④Rail systems with self-tapping screws
Rail systems with self-tapping screws are an excellent choice for solar roof mounting. The rails provide a sturdy and reliable framework for your solar panels, ensuring they stay securely in place. The self-tapping screws make installation a breeze as they can easily penetrate the roof material without the need for pre-drilling. This saves time and effort during the installation process. The combination of rails and self-tapping screws creates a strong and durable mounting system for your solar panels, allowing them to harness the power of the sun efficiently. It's a winning solution for your rooftop solar setup!
Detail images of installation:
Ballast brackets for flat concrete roofs are ideal for flat roofs and open spaces on residential and commercial buildings and are made of high-quality material , making them strong enough to withstand heavy snow loads and high winds alongside concrete blocks.
Triangle solar roof mounting system on a flat roof is a versatile solution that offers easy installation, optimal sunlight exposure, and stability for efficient solar power generation.
Clamp System Pitched Roof Mounting System is not only suitable for standard roofs, but also suitable for special tile types. It has the advantages of high adaptability and good mounting strength.
Rail-less system support solar modules by connecting the modules directly to the roof.They can consist of no more than three modules, saving up to 35 percent or more in material costs.
Adjustable Triangle Solar Roof Mounting System is a fantastic option for installing solar panels on a pitched roof. This system offers great flexibility and adaptability to ensure an optimal angle for capturing sunlight.
Solar roof hooks are used on shingle roofs to secure the rails and panels by driving the hooks into the ridge. Most commonly used in residential solar system.
Hooks made of stainless steel, mainly used for the installation of solar panels on roofs.
SR TC05/TC06 Roof Clamp is made of stainless, and suitable for trapezoid metal sheet roof.
