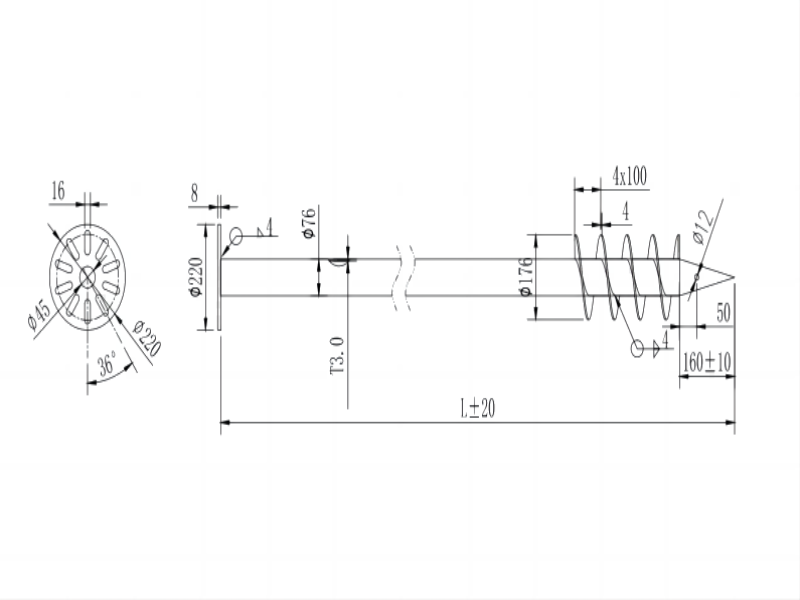

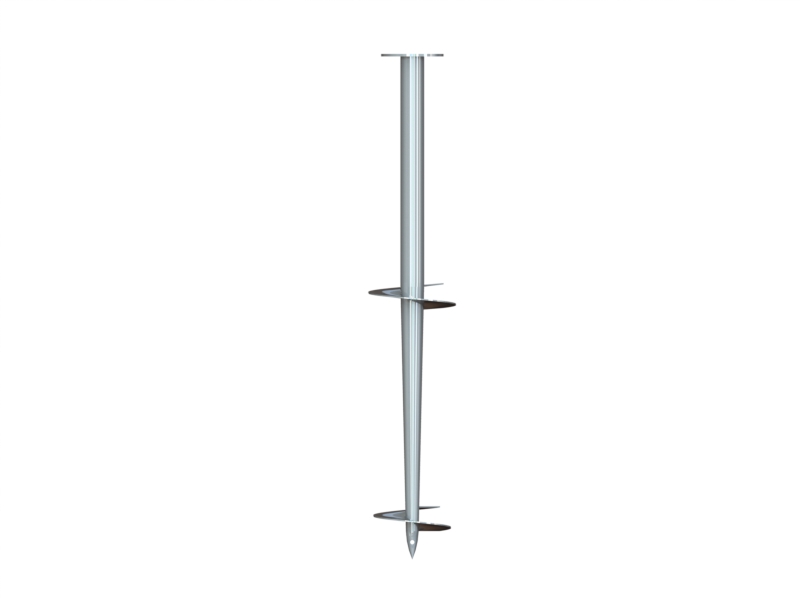

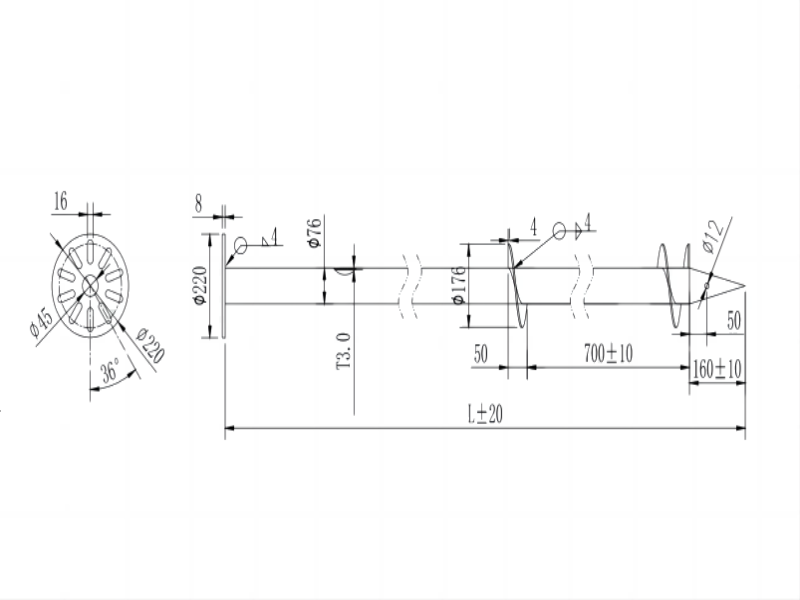

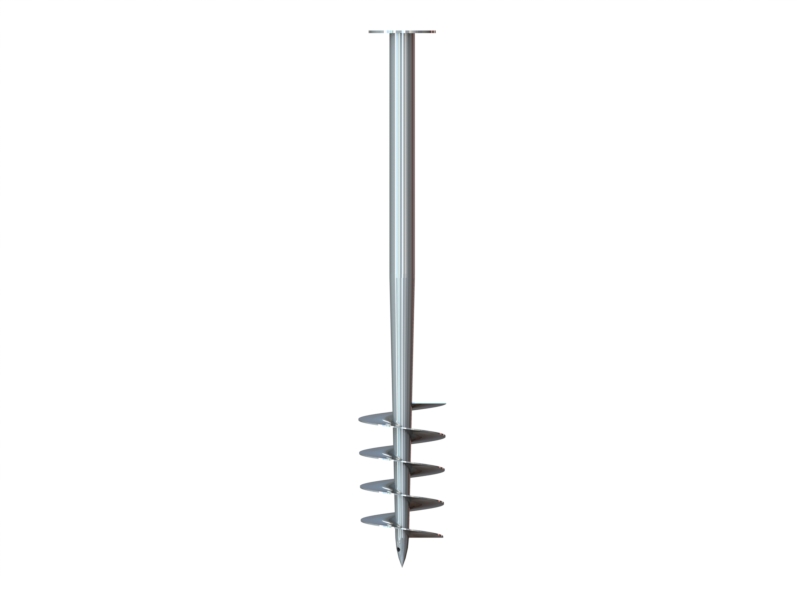

Designed for use in soft ground, large blade ground screw is available in 2-blade and 4-blade type. They have good resistance to pullout.
Item No :
SR DZ 02/SR DZ 03Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen, ChinaColor :
SilverShipping Port :
XiamenLead Time :
7-15 days| Brand： | SR SOLAR |
| Material： | Q235B |
| Treatment： | Hot-dip Galvanization |
| Diameter: | 76mm/OEM |
| Optional blade: | 2 blades/4 blades |
| Length: | L1200mm~L4000mm |
| Flange size: | 200mm/220mm |
| Thickness: | 3.0mm/3.25mm/3.5mm/OEM |
| Warranty: | 10 years |
| Certificate: | ISO9001/SGS |
Product Description:
The blades of large ground screws are much bigger than those of common ground screws. These blades increase the friction with the ground, making them difficult to pull out or sink after being driven in. They are great for soft ground or very windy areas. We can provide different lengths and types of large ground screw with blades, depending on the circumstances of the case and the condition of the land.
Advantages：
1. Strong friction:
The larger surface area of the blade allows for more contact with the ground, resulting in stronger friction. This ensures a firm hold in the soil, providing stability and preventing movement.
2.Flexibility
Not only can the length and diameter be adjusted, but also the number and span of the blades. This flexibility allows for precise tailoring to different projects and soil conditions.
3.Versatility
Large blade ground screw is suitable for a wide range of terrains, including clay and sandy soil. This versatility makes it a practical choice for various geologies, providing reliable support in different environments.
FAQ：
1.Q:How to construct the large blades screw?
A:The construction process for large blade screw is similar to that of common ground screw. It is driven into the ground using the same machine, ensuring efficient installation.
2.Q:Large blades screw and common ground screw, which is more expensive?
A:Large blade screw may be more expensive compared to common ground screw due to the additional materials required to create the larger blades. However, the added benefits they provide in terms of stability and durability can make them a worthwhile investment.
3.Q:Besides 2-blade and 4-blade,what other types of ground screw can you produce?
A:we can produce ground screw with various blade configurations. The number of blades can be adjusted based on customers' requirements, and we can even manufacture ground screws with up to 10 blades if needed. This allows for further customization and adaptability to specific project needs.
Ground Screw is the foundation of solar bracket for solar power plants. It is used to drive into the ground and connect to the bracket above, supporting the whole system. It is a very important part of the solar system.
Designed for use in soft ground, large blade ground screw is available in 2-blade and 4-blade type. They have good resistance to pullout.
Adjustable ground screw is based on the common ground screw, separate the flange from the tube so that it can be adjusted in length. Suitable for areas with uneven land.
Double flanges ground screw is fixed on the common ground screw to increase the height of it. It is suitable for the area with big drop or pit.
Fluidized bed powder coating Fence is made of steel, and treated with Fluidized bed powder coating. It is commonly used for the security of ground-mounted solar power plants, farms or ranches, golf courses, etc. to prevent thieves and wild animals from entering. It is the most popular type of fence due to its beautiful appearance, durability and low cost. It is suitable even for sloping type of land.
Hot-dip galvanized fence is made of steel, and treated with hot-dip galvanization on the surface. It can be used for more than 20 years, most popular choice for coastal areas and other areas with more serious salt damage. It is suitable even for sloping type of land.
This type of fence is treated with both hot-dip galvanization and fluidized bed powder coating on the surface, which meets the need for corrosion protection while providing a smooth and beautiful surface.
Animal Solar Plant Security Fence is a simple and easy to install fence that comes in rolls, distinguishing it from mesh fencing that is installed piece by piece. It is commonly used in mountainous areas, ground-mounted solar power plants, farms or ranches to keep wildlife out.
