PV solar grounding clips is installed under the middle clamp to puncture the surface of the aluminum solar mounting structure and conduct the static electricity generated by the panel and bracket into the ground.
Item No :
SR GC 03~17Payment :
30% T/T as deposit,70% before shipment.Product Origin :
Xiamen, ChinaColor :
SilverShipping Port :
XiamenWeight :
2.5gBrand: | SR SOLAR |
Material: | SUS 304 |
Application Site: | Any solar mounting system equipment |
Function: | conduct the static electricity generated by the panel and bracket into the ground |
Standard: | JISC 8955-2017 |
Certificate: | ISO9001/SGS |
Product Description:
Item NO. | Description |
SR GC 03 | Size:30mmx32mm/thickness:0.3mm |
SR GC 04 | Size:30mmx32mm/thickness:0.3mm |
SR GC 05 | Size:31.6mmx50mm/thickness:0.3mm |
SR GC 06 | Diameter:34mm/thickness:0.3mm |
SR GC 08 | Size:40mmx50mm/thickness:0.3mm |
SR GC 10 | Size:42mmx50mm/thickness:0.3mm |
SR GC 11 | Diameter:44mm/thickness:0.3mm |
SR GC 13 | Size:60mmx80mm/thickness:0.3mm |
SR GC 17 | Size:23mmx69mm/thickness:0.3mm |
Product Photos:
![]() |
![]() |
![]() |

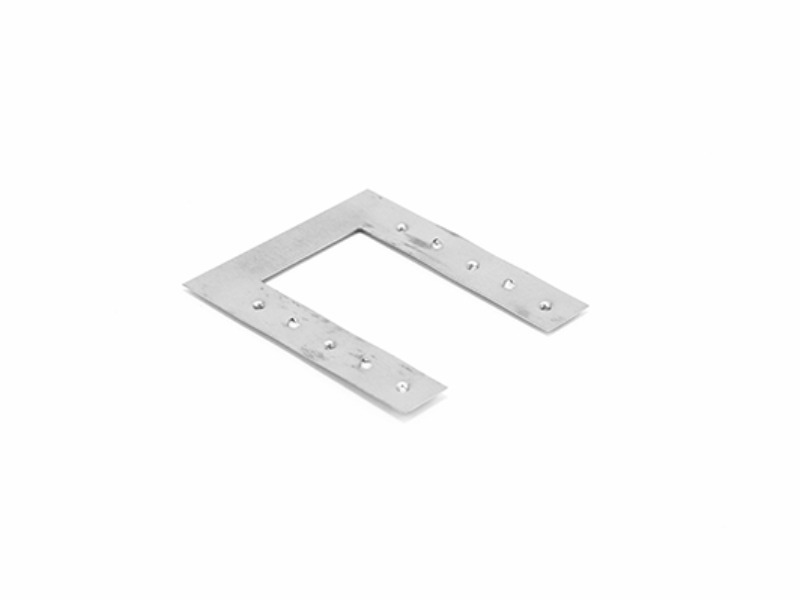

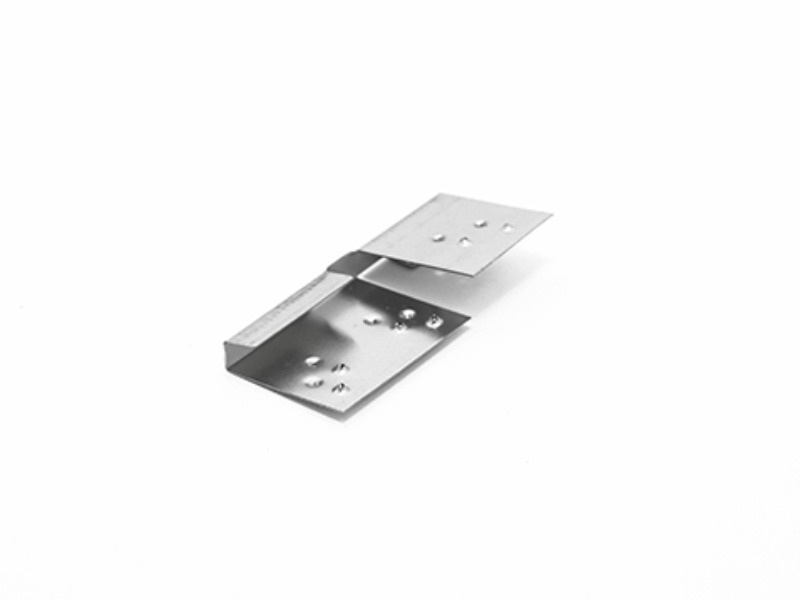

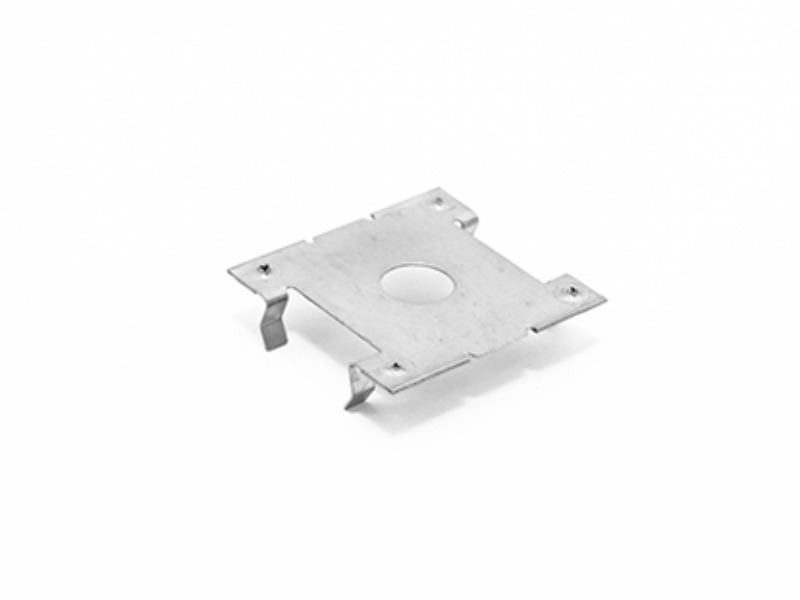

SR GC 03 | SR GC 04 | SR GC 05 |
![]() |
![]() |
![]() |

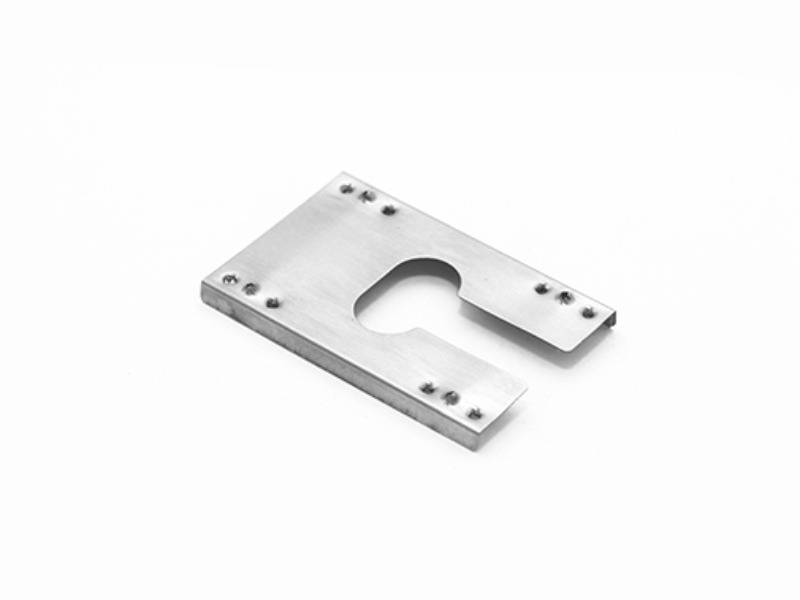

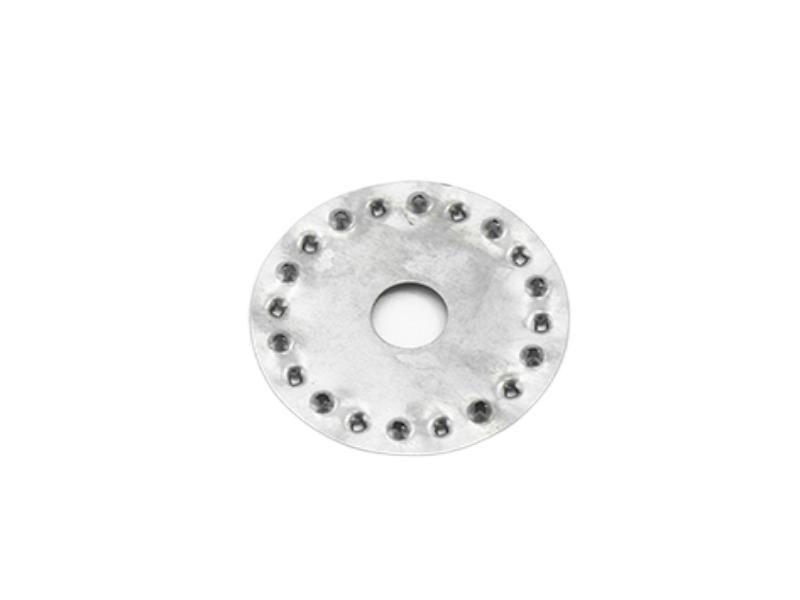

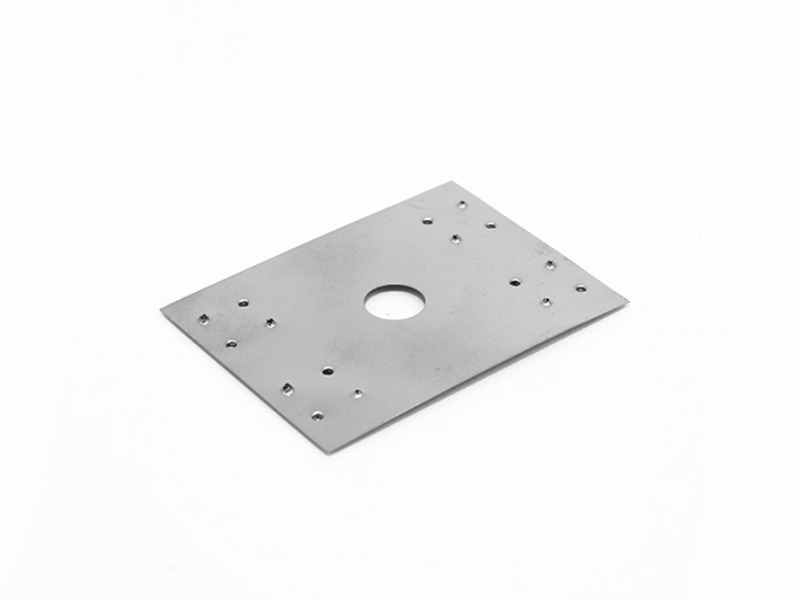

SR GC 06 | SR GC 08 | SR GC 10 |
![]() |
![]() |
![]() |

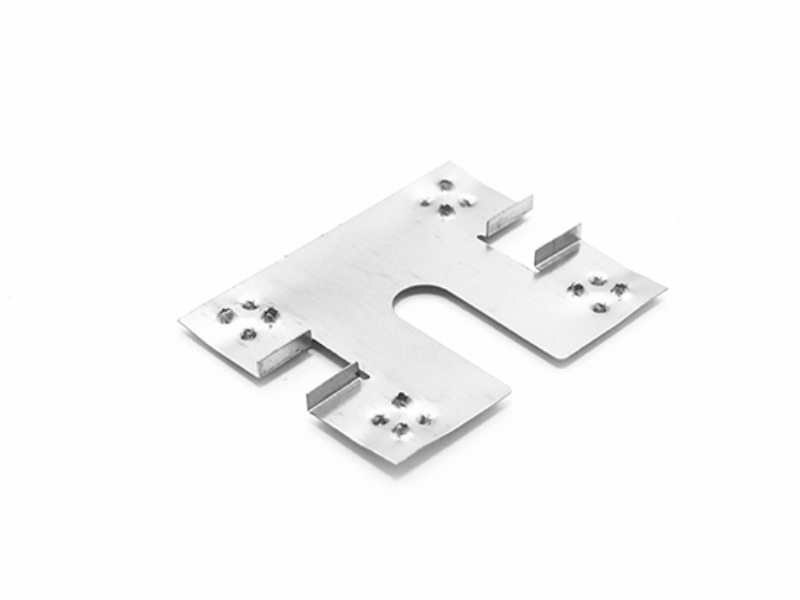

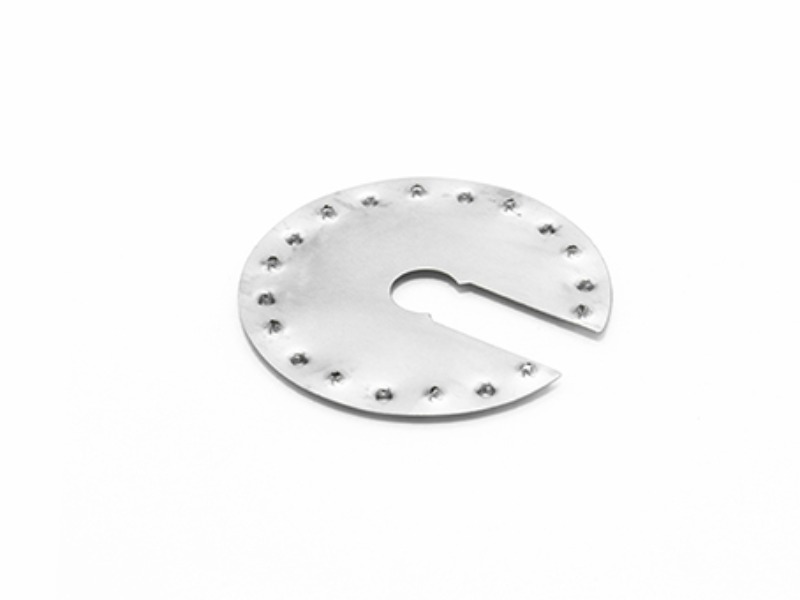

SR GC 11 | SR GC13 | SR GC 17 |
