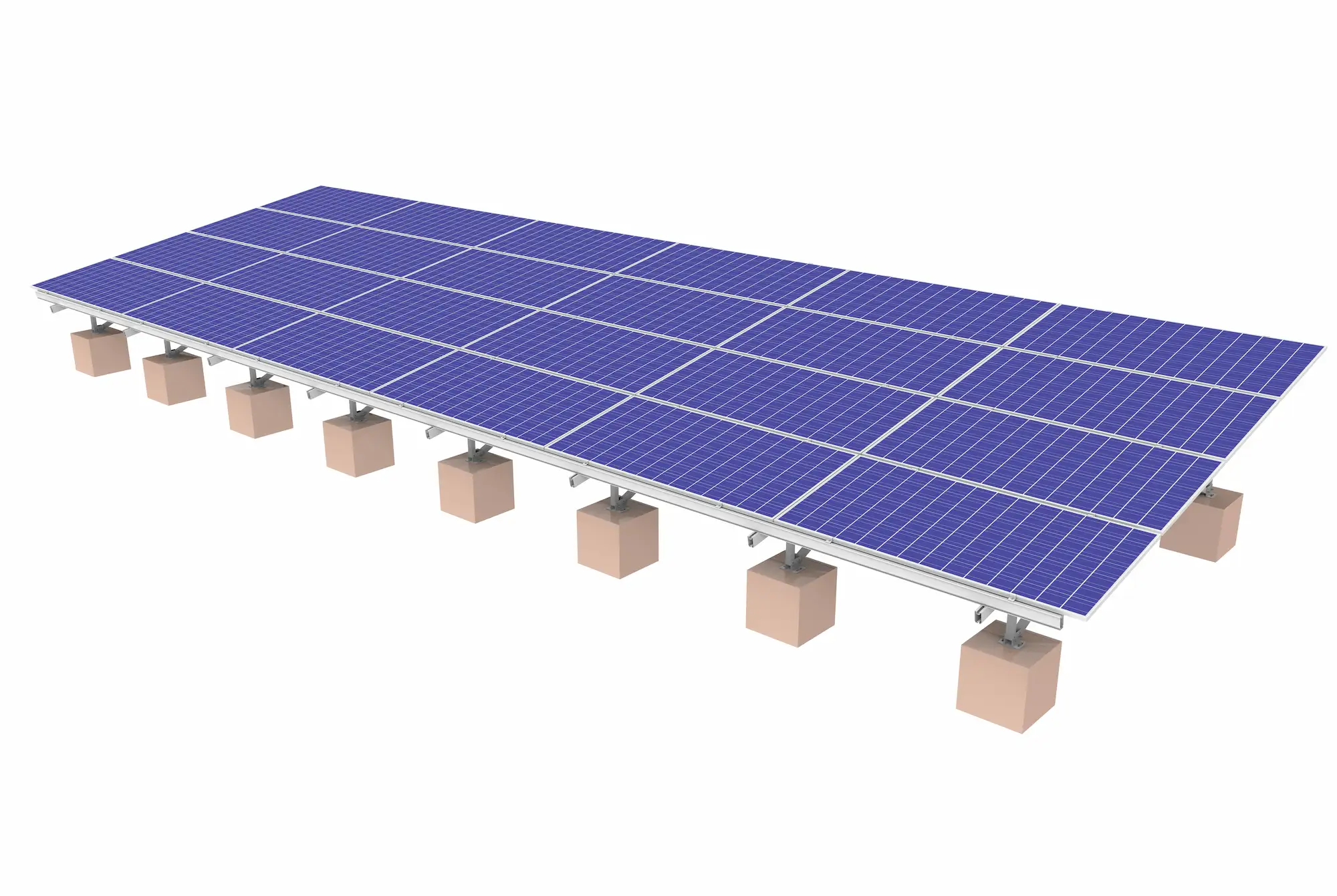

Concrete Foundation Ground Mounting System
A reliable ground mounting solution using concrete foundations for commercial and utility-scale solar projects.
Concrete Foundation Gorund Mounting System
Overview

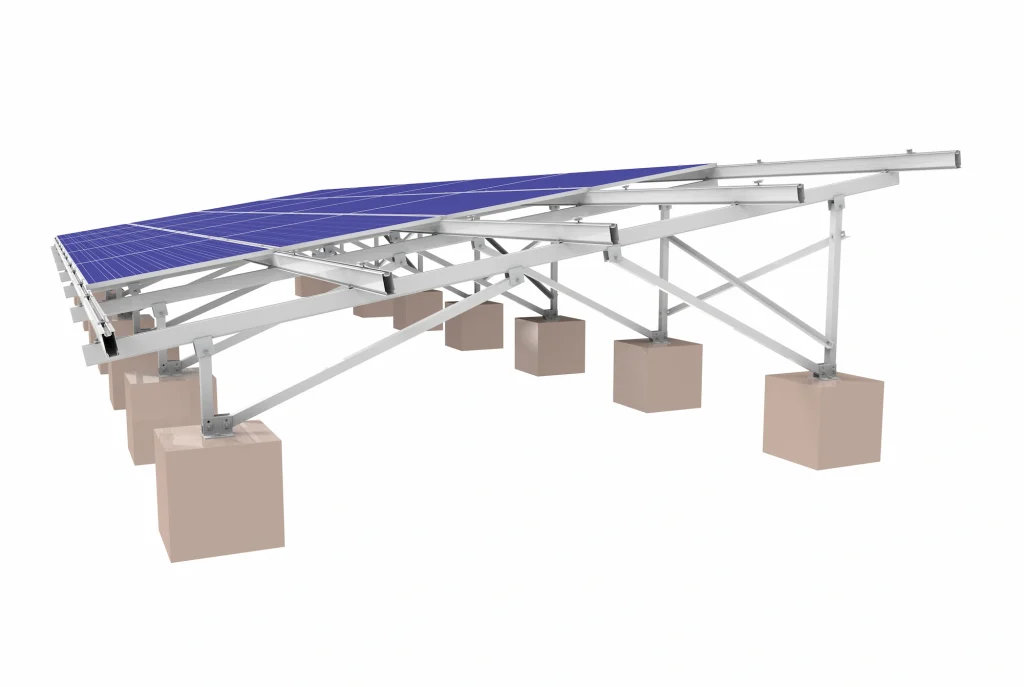

SR Solar’s Concrete Foundation Ground Mounting System is designed for solar projects requiring concrete-based foundation solutions. It supports different foundation configurations, including concrete blocks, cast-in-place concrete foundations, and concrete-reinforced ground foundations where additional foundation strength is required to meet project-specific load requirements. Available with aluminum or steel mounting structures, the system features customized structural designs and foundation connection solutions tailored to site conditions and project specifications.
Note: SR Solar supplies the solar mounting structure and corresponding foundation connection solutions only. Concrete blocks, concrete materials, and foundation construction are not included in our supply scope.
Customization Options
System Size: Customized dimensions and structural height.
Materials: Aluminum or steel options based on project requirements.
Project Requirements: Customized structural configurations and other project-specific needs.
In-House Manufacturing
Engineering Support
Flexible Configurations
Installation Support
Product Parameters
| Material | Aluminum (AL6005-T6) / Steel (S350GD) |
|---|---|
| Surface Treatment | Anodizing / Hot-Dip Galvanizing / ZAM Coating |
| Foundation | Concrete Block / Concrete-Reinforced |
| Design Standards | JIS / BS / ASCE / Eurocode |
| Wind Load | Customized to project requirements |
| Snow Load | Customized to project requirements |
| Tilt Angle | Customized to meet project requirements |
| Warranty | 10 Years |
| Design Service Life | 25+ Years |
Product Features
1. Aluminum or Steel Structure Options
Available in AL6005-T6 aluminum alloy or S350GD steel, allowing customers to select suitable materials according to project requirements, structural design, and budget.
2. Multiple Concrete Foundation Solutions
Compatible with different concrete foundation configurations, including precast concrete blocks and cast-in-place concrete foundations. The connection design can be adapted to different project layouts and site conditions.
3. Concrete-Reinforced Foundation Design
For projects where conventional ground foundations alone may not provide sufficient resistance to wind uplift or other design loads, additional concrete reinforcement can be incorporated into the foundation design to improve foundation stability and load resistance.
4. Customized Structural Configuration
Span, height, tilt angle, and structural dimensions can be customized to meet different project layouts, terrain conditions, and installation requirements.
5. Project-Specific Load Design
Wind and snow load requirements are considered in the structural and foundation design according to applicable standards, geotechnical conditions, and project specifications.
6. Flexible Foundation Connection Solutions
SR Solar provides the mounting structures and corresponding foundation connection solutions. Concrete blocks, concrete materials, and on-site foundation construction are not included in our supply scope.
Accessories
Product Details
Concrete Foundation Ground Mount System Project
Discuss Your Solar Mounting Project
Looking for a reliable ground mounting system for your next project? Share your requirements with our engineering team.
