Tile Roof Solar Mounting System
A flexible solar mounting solution designed for different tile roof types, with mounting options to suit various roof structures.
Tile Roof Solar Mounting Brackets
Overview

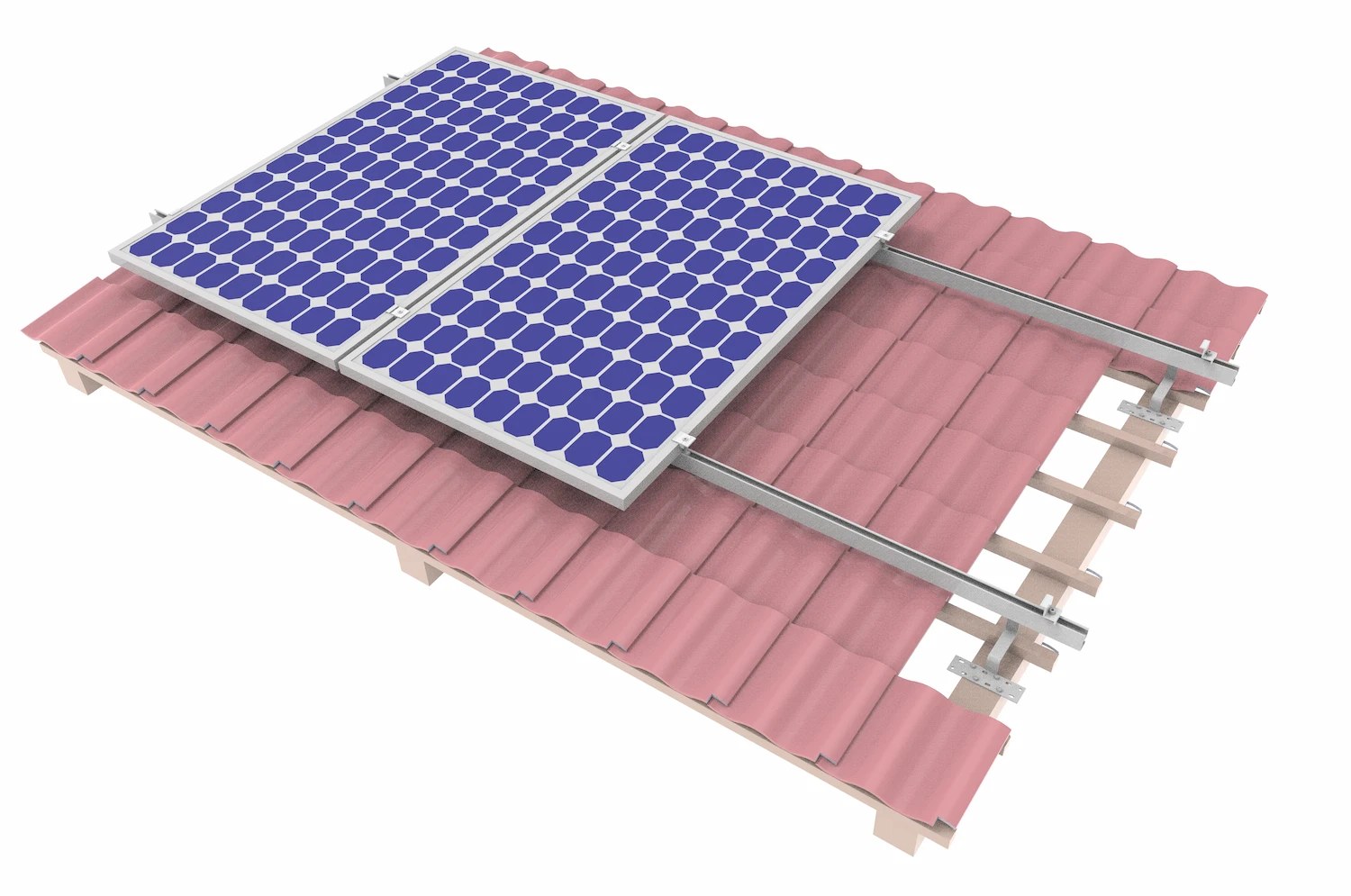

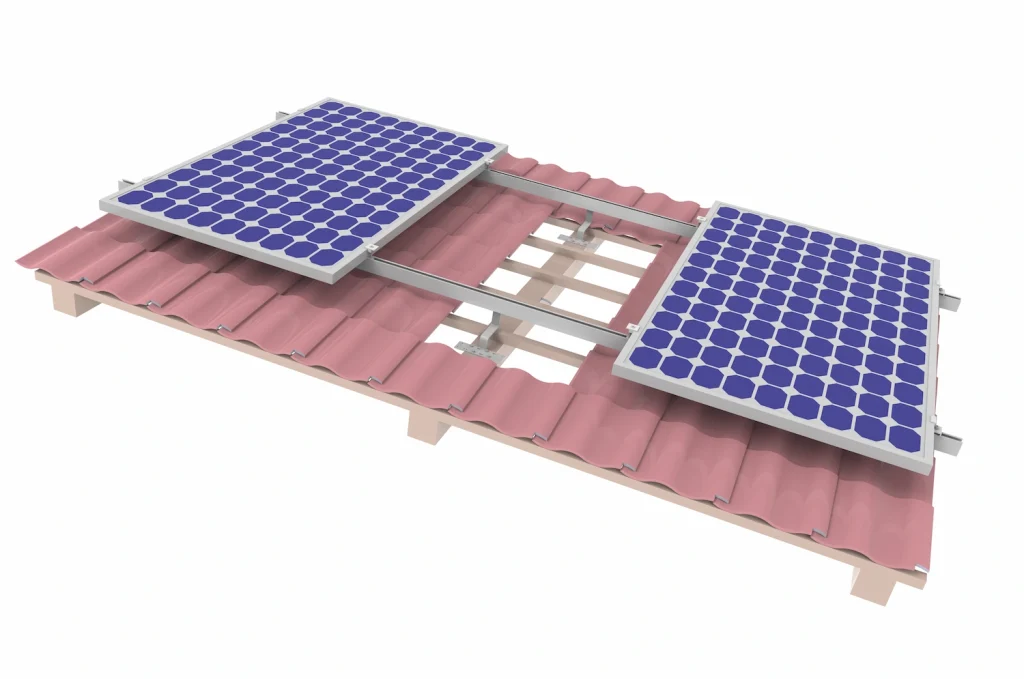

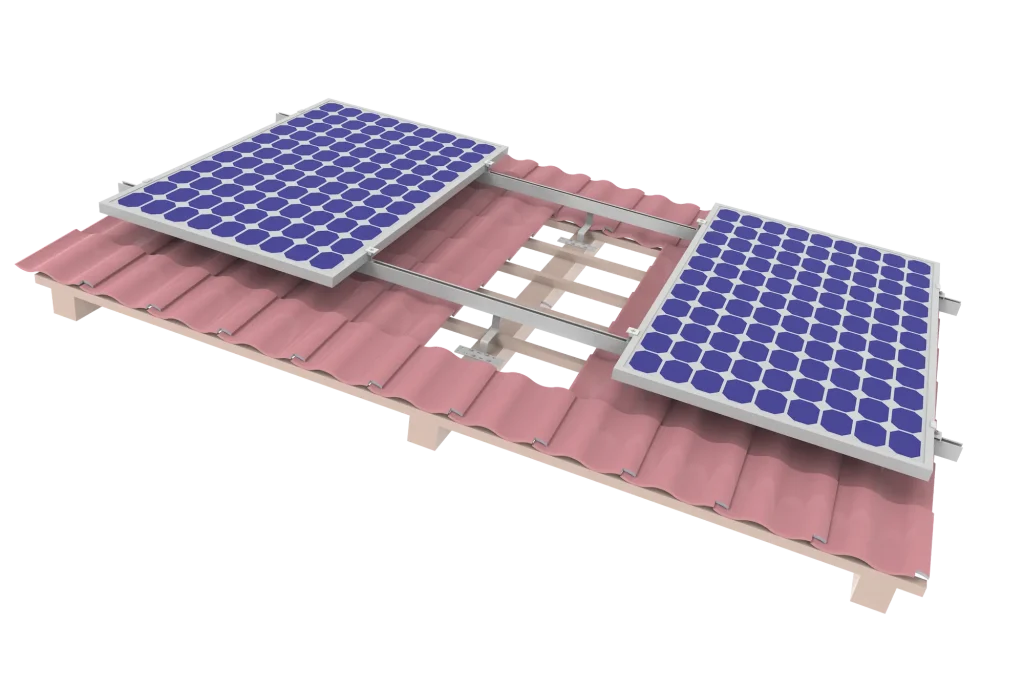

SR Solar’s Tile Roof Mounting System is designed for photovoltaic installations on tiled roofs, using specialized roof hooks to connect the mounting structure to the roof structure beneath the tiles. The system can be configured for different tile profiles and roof conditions, with mounting rails supporting secure and flexible module installation. For projects requiring a different module inclination, adjustable rear legs or triangular support structures can also be considered according to the roof layout and structural requirements.
Customization Options
System Size: Customized dimensions and structural height.
Materials: Aluminum or steel options based on project requirements.
Project Requirements: Customized structural configurations and other project-specific needs.
In-House Manufacturing
Engineering Support
Flexible Configurations
Installation Support
Product Parameters
| Material | Aluminum (AL6005-T6) / Stainless Steel (SUS304) |
|---|---|
| Surface Treatment | Anodizing |
| Design Standards | JIS / BS / ASCE / Eurocode |
| Wind Load | Customized to project requirements |
| Snow Load | Customized to project requirements |
| Tilt Angle | Customized to meet project requirements |
| Warranty | 10 Years |
| Design Service Life | 25+ Years |
Product Features

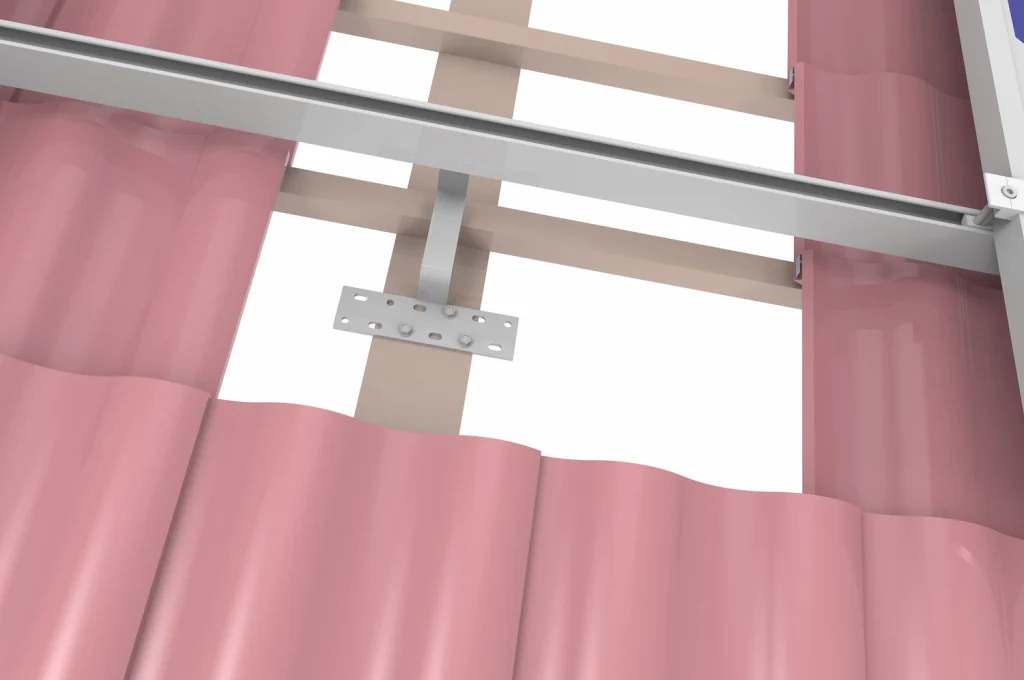

Tile Roof Hook Connections – Uses specialized roof hooks to provide secure attachment to suitable tiled roof structures.
Suitable for Different Roof Applications – Designed for residential and commercial tiled roof installations.
Corrosion-Resistant Components – Uses anodized aluminum profiles and stainless steel components for outdoor applications.
Simplified Installation – An optimized component arrangement helps reduce installation steps and on-site labor.
Adjustable Mounting Solutions
Adjustable Tilt Roof Mounting System
SR Solar’s Adjustable Tilt Roof Mounting System uses adjustable rear legs to change the inclination of solar modules according to project requirements. Installed in combination with suitable roof attachment components, such as metal roof clamps, L-feet, or tile roof hooks, the system allows modules to be mounted at different angles while maintaining a secure connection to the roof structure. It provides a flexible solution for projects where a roof-parallel installation does not offer the desired module orientation.
Adjustable Triangle Roof Mounting System
SR Solar’s Adjustable Triangle Roof Mounting System uses triangular support structures to elevate solar modules and provide the required installation angle. The triangle brackets are connected to suitable roof attachment components and can be configured according to roof conditions, module layout, and project requirements. This structure provides additional support beneath the modules and offers an alternative to conventional roof-parallel mounting configurations.
Accessories
Product Details
Discuss Your Solar Mounting Project
Looking for a reliable roof mounting system for your next project? Share your requirements with our engineering team.
