Driven-Pile Foundation Ground Mounting System

overview

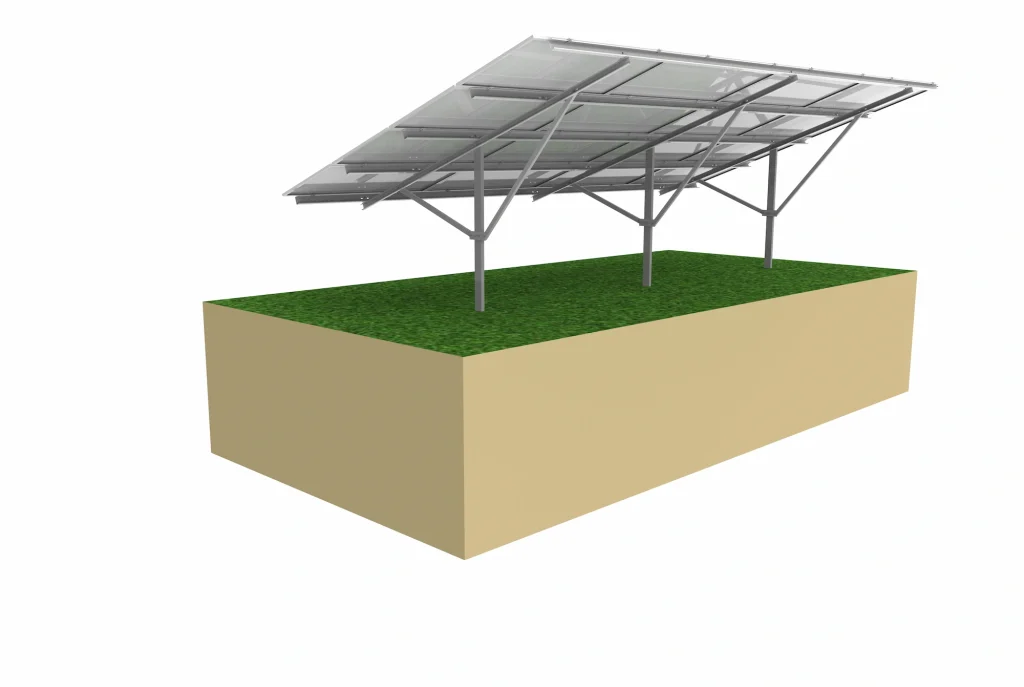

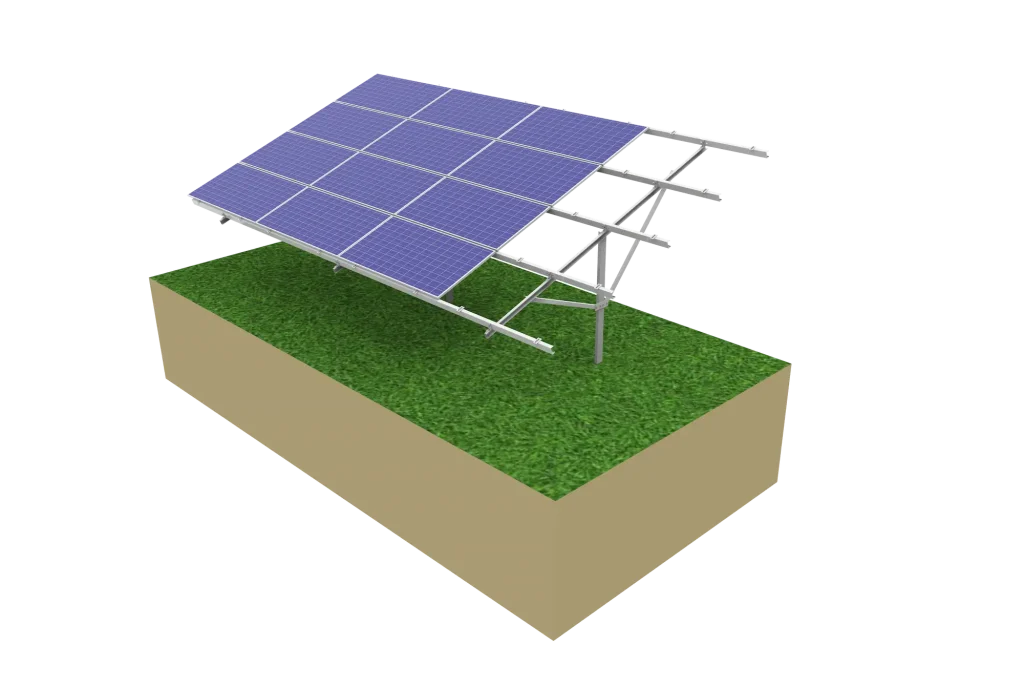

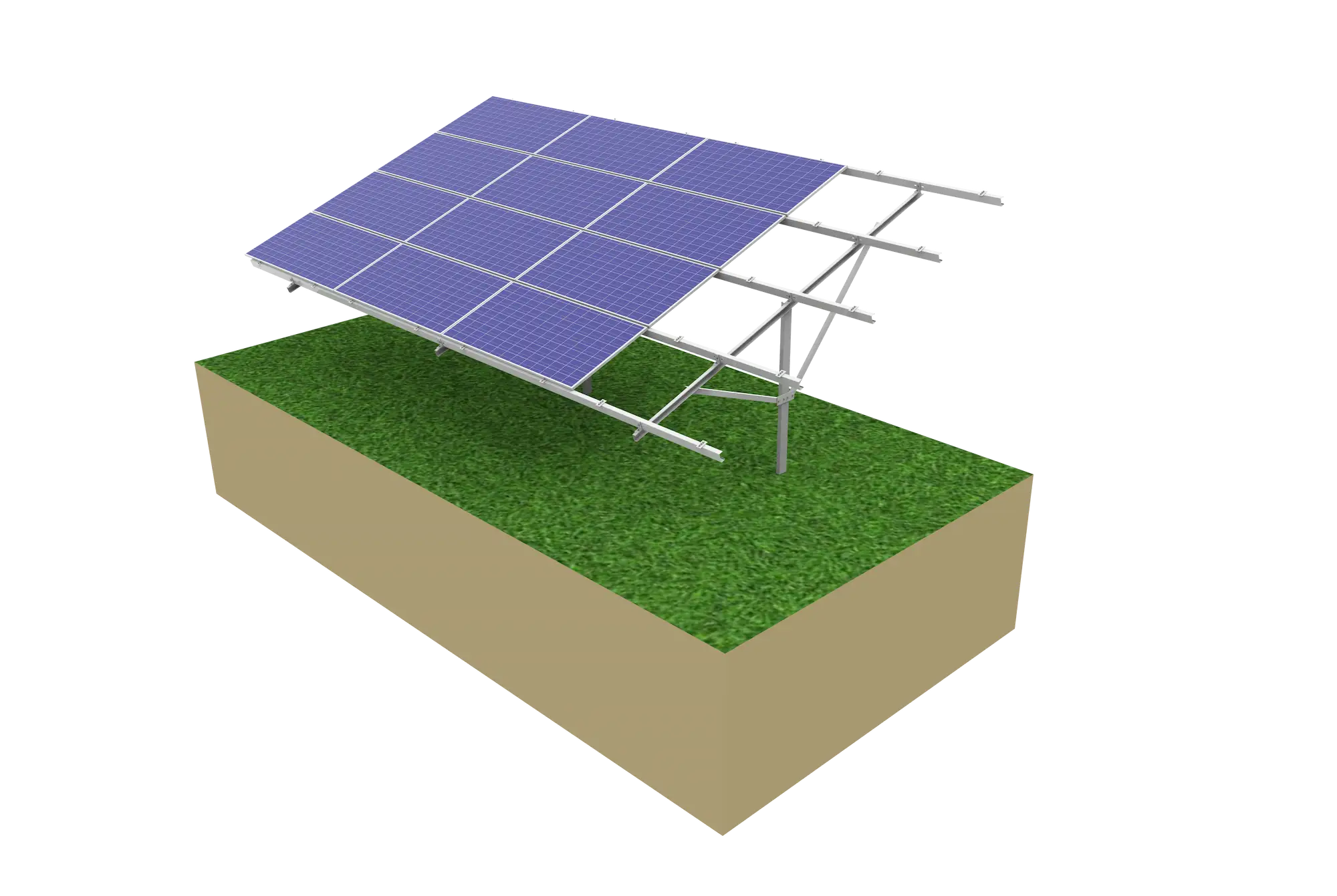

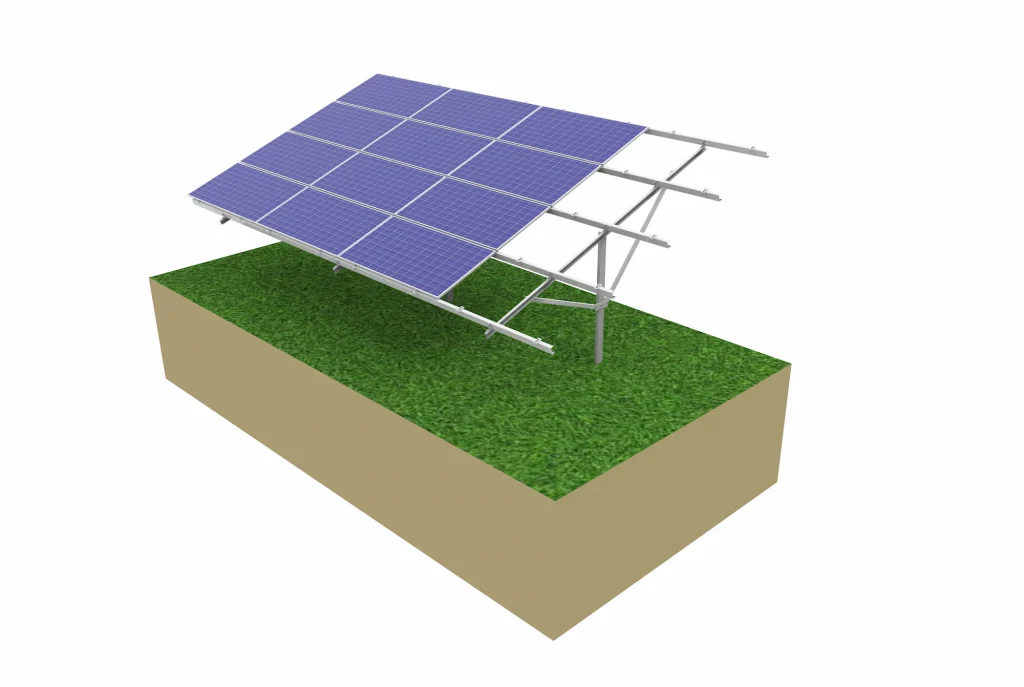

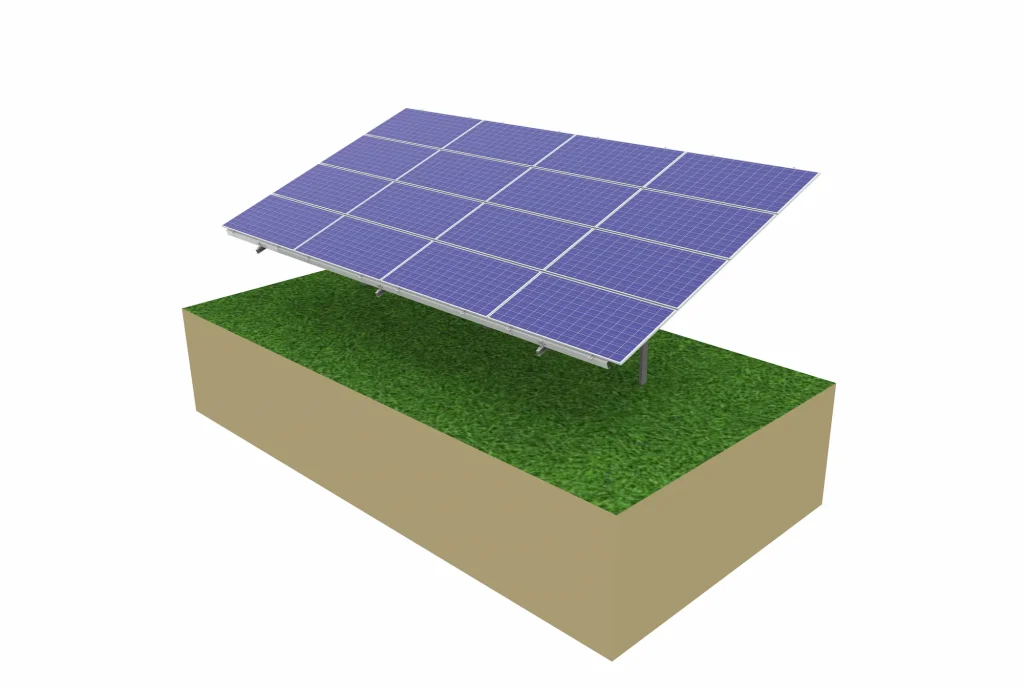

SR Solar’s Driven-Pile Foundation Ground Mounting System uses steel piles driven directly into the ground to support solar mounting structures, providing an efficient foundation solution for large-scale ground-mounted solar projects. Common pile profiles include C-shaped, H-shaped, and U-shaped steel piles, with customized pile types and dimensions available according to project requirements. The system can also be configured with single-pile or multi-pile arrangements to accommodate different soil conditions, terrain variations, structural loads, and project layouts.

Customization Options

System Size: Customized dimensions and structural height.
Materials: Aluminum or steel options based on project requirements.
Project Requirements: Customized structural configurations and other project-specific needs.

In-House Manufacturing

Engineering Support

Flexible Configurations

Installation Support

Product Parameters

Material	Aluminum (AL6005-T6) / Steel (S350GD)
Surface Treatment	Anodizing / Hot-Dip Galvanizing / ZAM Coating
Foundation	C-Shaped Pile / H-Shaped Pile / U-Shaped Pile
Foundation Configuration	Single-Pile / Multi-Pile
Design Standards	JIS / BS / ASCE / Eurocode
Wind Load	Customized to project requirements
Snow Load	Customized to project requirements
Tilt Angle	Customized to meet project requirements
Warranty	10 Years
Design Service Life	25+ Years

Product Features

1. Multiple Steel Pile Profiles
Available in C-shaped, H-shaped, and U-shaped steel pile profiles. Other pile types and dimensions can be customized according to project requirements.

2. Direct-Driven Foundation Design
Steel piles are driven directly into the ground, providing a practical foundation solution without requiring conventional concrete foundations for suitable soil and site conditions.

3. Single-Pile and Multi-Pile Configurations
Flexible foundation arrangements are available to meet different structural load requirements, terrain conditions, and mounting system layouts.

4. Flexible Terrain Adaptability
The pile length, embedment depth, and structural configuration can be adjusted according to ground elevation differences, soil conditions, and project requirements.

5. Aluminum or Steel Structure Options
Available with AL6005-T6 aluminum alloy or S350GD steel mounting structures to meet different project requirements and budget considerations.

6. Project-Specific Structural Design
Wind loads, snow loads, tilt angles, pile specifications, and foundation configurations can be designed according to project conditions and applicable design standards.
