Ordinary Ground Type Agri-PV Mounting System
A versatile ground mounting solution with multiple ground screw foundation options for different soil conditions and project requirements.
Ordinary Ground Type Agrivoltaics Mounting System
overview

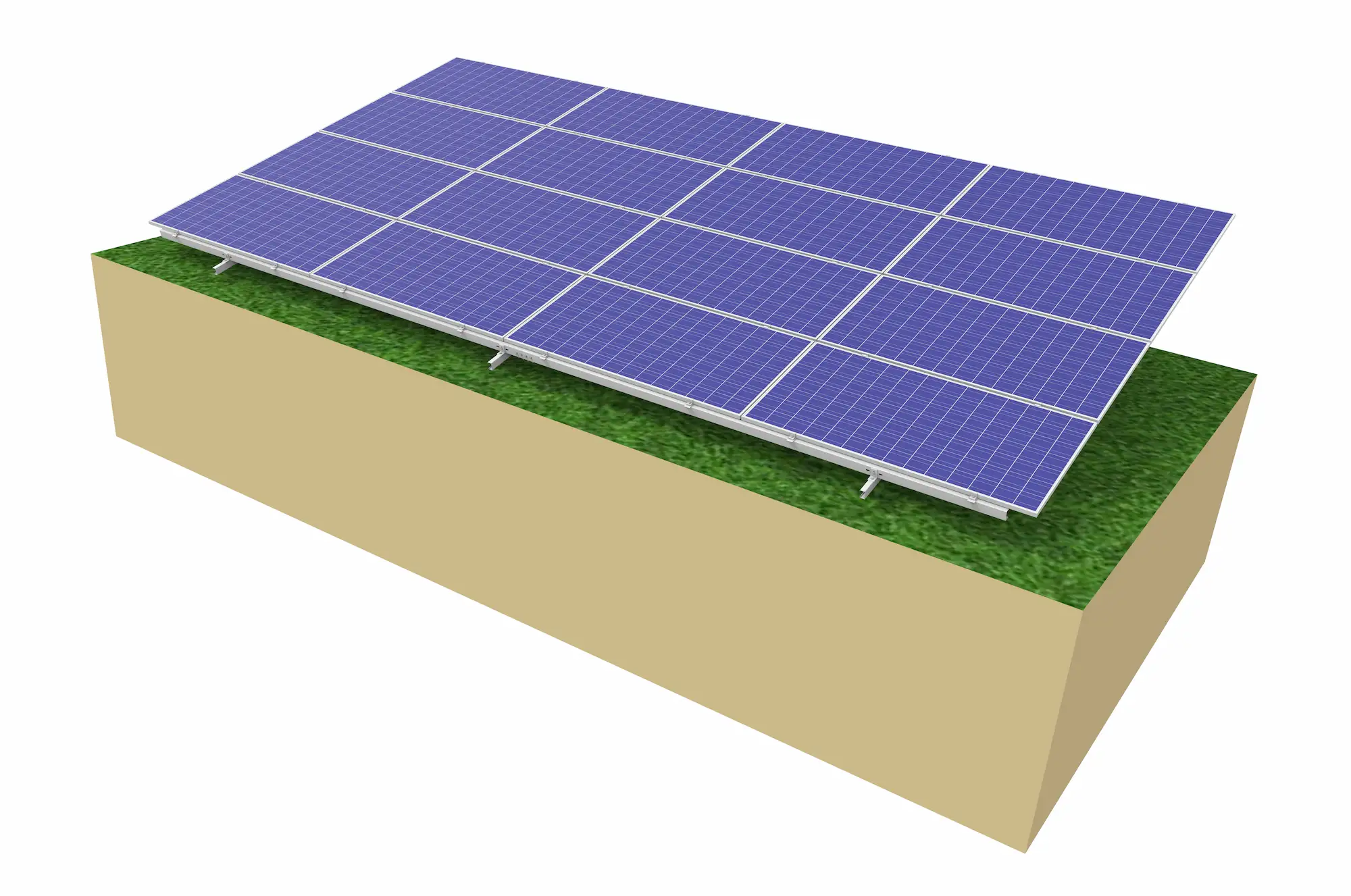

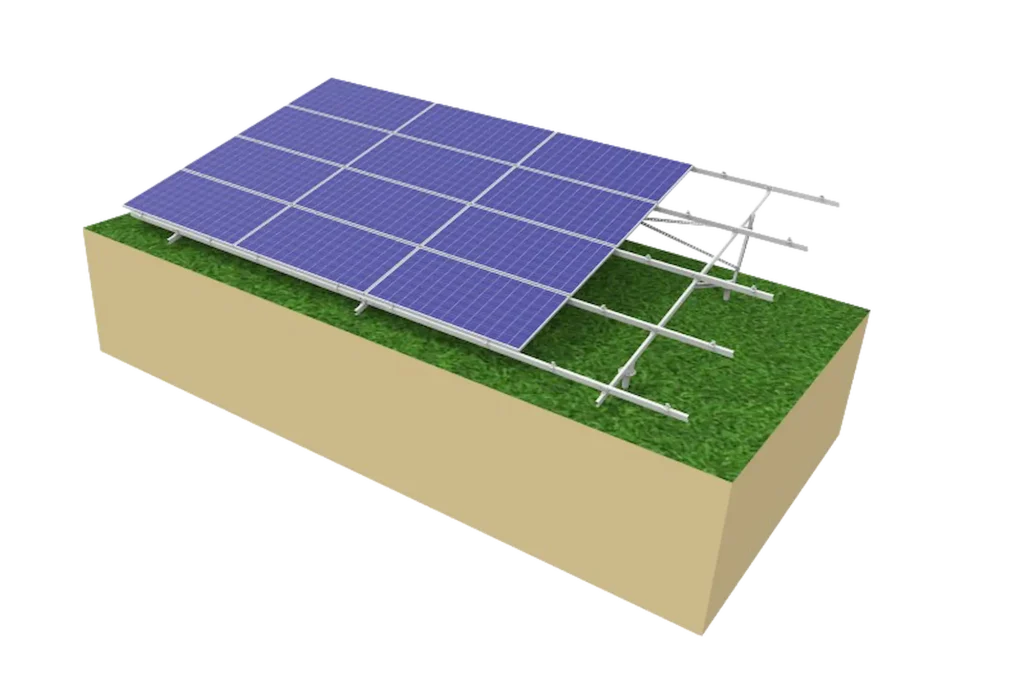

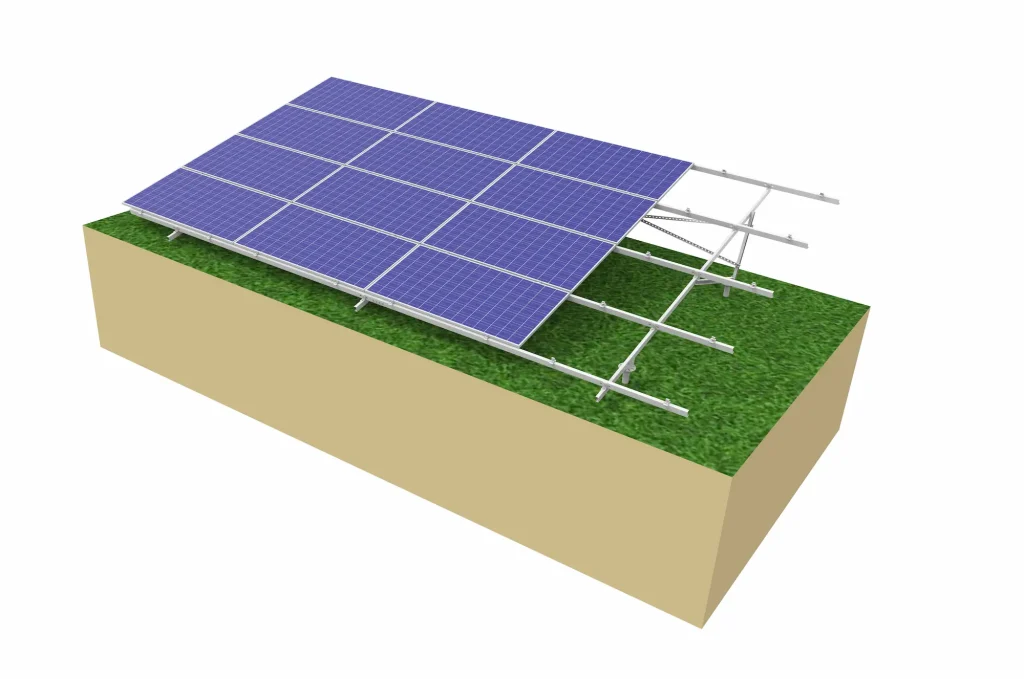

SR Solar’s Ground Screw Foundation Ground Mounting System uses ground screws to anchor solar mounting structures securely into the ground. Available with aluminum or steel mounting structures, the system supports various ground screw configurations, including standard, double-blade, four-blade, and adjustable types. Foundation specifications and structural designs can be customized according to soil conditions, load requirements, terrain, and project layouts, providing a flexible solution for ground-mounted solar installations.
Customization Options
-
System Size: Customized dimensions and structural height.
-
Materials: Aluminum or steel options based on project requirements.
-
Project Requirements: Customized structural configurations and other project-specific needs.
In-House Manufacturing
Engineering Support
Flexible Configurations
Installation Support
Product Parameters
| Material | Aluminum (AL6005-T6) / Steel (S350GD) |
|---|---|
| Surface Treatment | Anodizing / Hot-Dip Galvanizing / ZAM Coating |
| Foundation | Ground Screw |
| Ground Screw Types | Standard / Double-Blade / Four-Blade / Adjustable |
| Design Standards | JIS / AS/NZS / ASCE / Eurocode |
| Wind Load | Customized to project requirements |
| Snow Load | Customized to project requirements |
| Tilt Angle | Customized to meet project requirements |
| Warranty | 10 Years |
| Design Service Life | 25+ Years |
Product Features
1. Multiple Ground Screw Options
Available in standard, double-blade, four-blade, and adjustable configurations to accommodate different soil conditions and foundation requirements. Customized ground screw specifications are also available for project-specific applications.
2. Aluminum or Steel Mounting Structures
Choose between lightweight aluminum alloy and high-strength steel structures according to project requirements, installation conditions, and budget.
3. Lightweight Aluminum Structure
Aluminum components offer a lightweight design and high levels of pre-assembly, helping simplify handling and installation. Durable surface protection provides corrosion resistance, while adjustable connections can accommodate certain on-site installation tolerances.
4. High-Strength Steel Structure
Steel mounting structures offer high structural strength and can be a cost-effective alternative to aluminum, depending on the design and project specifications. Their structural configurations can be adapted for sloping and mountainous terrain according to site conditions.
5. Flexible Terrain Adaptability
Ground screw specifications, pile lengths, and mounting structure configurations can be customized according to soil conditions, ground elevation differences, and project requirements.
6. Project-Specific Structural Design
Wind loads, snow loads, tilt angles, and structural dimensions can be customized according to project specifications and applicable design standards.

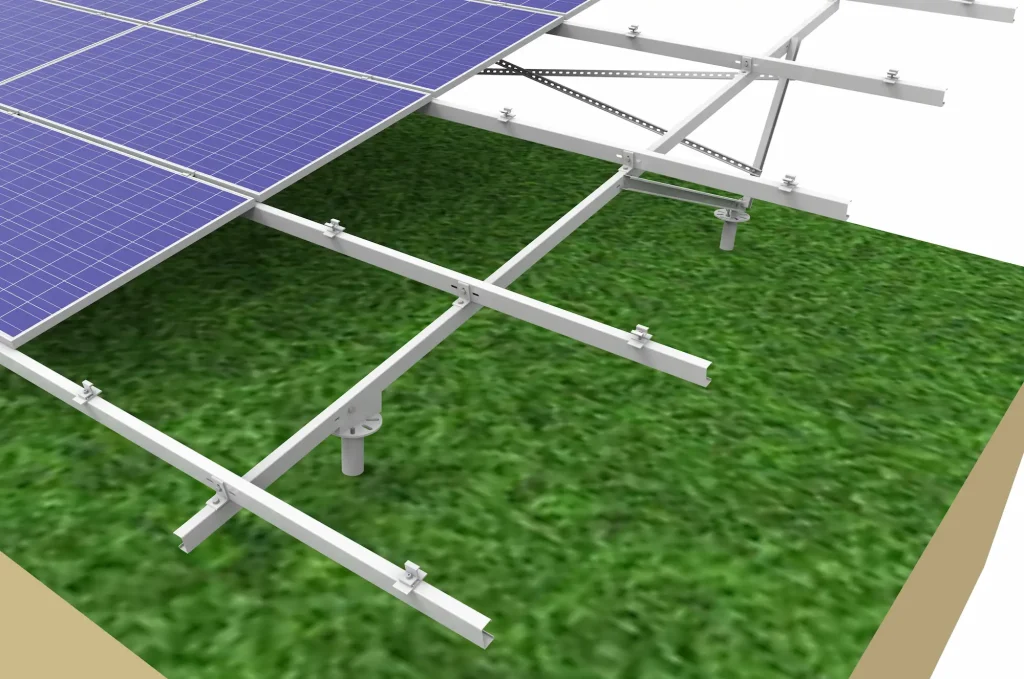

Product Details
Ground Screw Foundation Mounting System Project
