Metal Roof Solar Mounting System
A versatile solar mounting solution designed for different metal roof profiles and installation requirements.
Metal Roof Solar Mounting System
Overview
SR Solar’s Metal Roof Mounting System provides flexible photovoltaic installation solutions for different metal roof profiles and structural requirements. The system mainly includes metal roof clamp and L-foot mounting configurations, with options for both rail-based and rail-free installation.

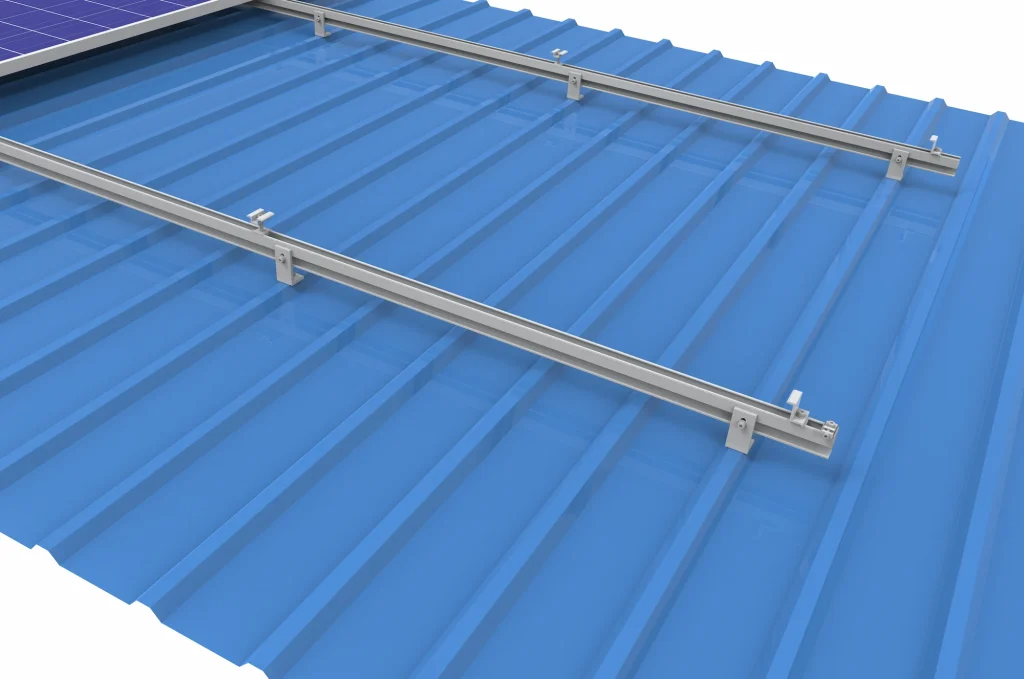

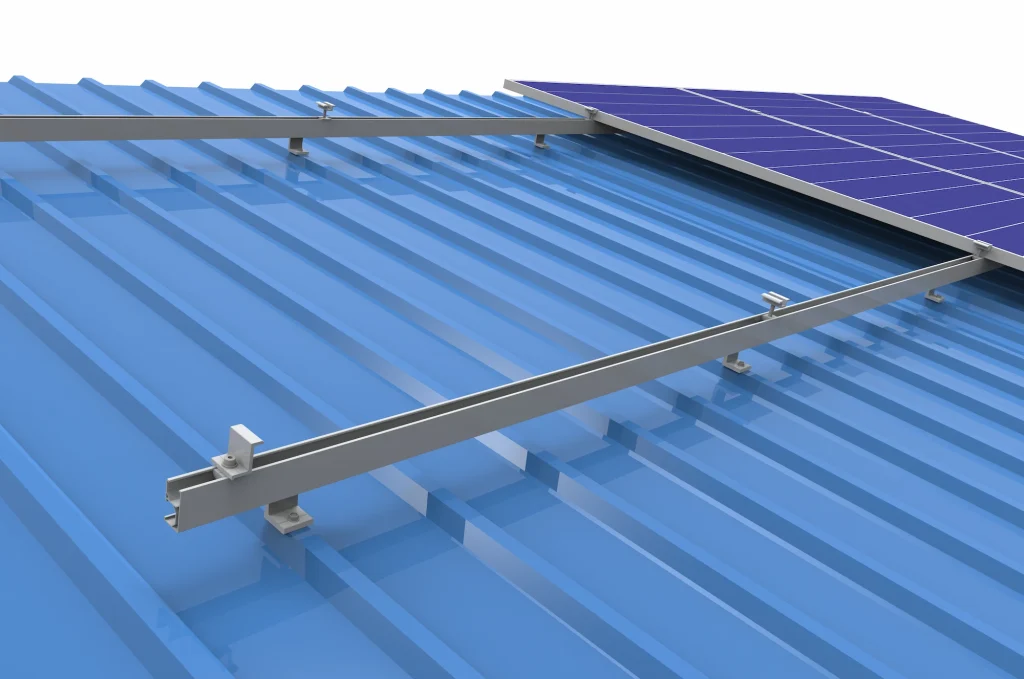

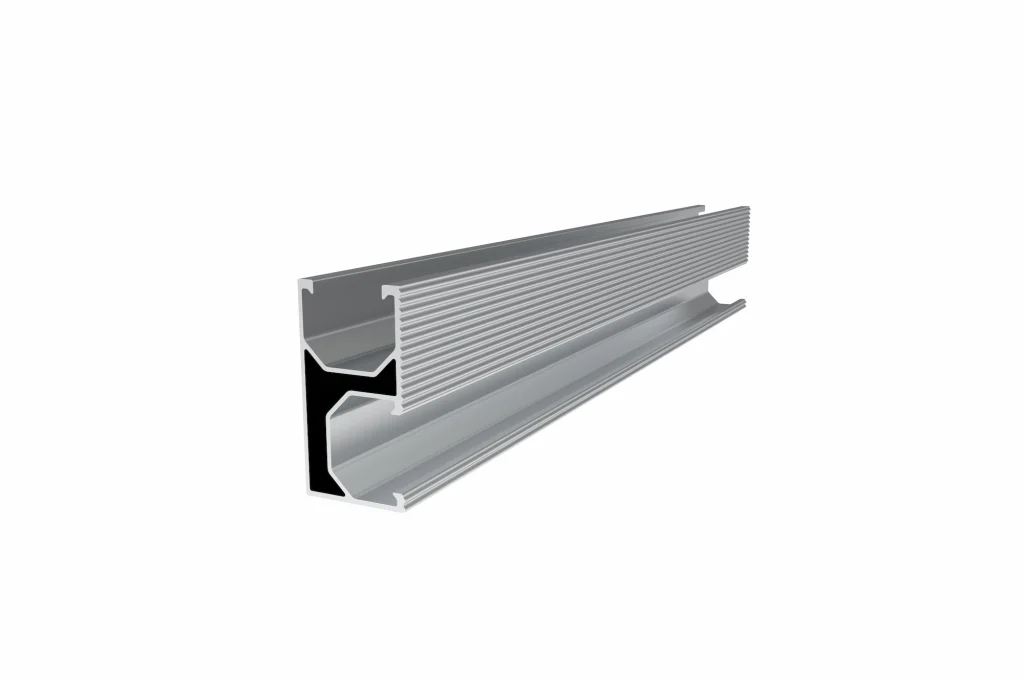

Metal roof clamps can be supplied with mini rails or used in rail-free configurations, depending on the roof profile and mounting design. L-foot brackets provide another common attachment option for connecting mounting rails to suitable metal roof structures. For projects requiring an increased module inclination, adjustable rear legs or triangular support structures can also be incorporated into the mounting design.
Customization Options
System Size: Customized dimensions and structural height.
Materials: Aluminum or steel options based on project requirements.
Project Requirements: Customized structural configurations and other project-specific needs.
In-House Manufacturing
Engineering Support
Flexible Configurations
Installation Support
Product Parameters
| Material | Aluminum (AL6005-T6) / Stainless Steel (SUS304) |
|---|---|
| Surface Treatment | Anodizing |
| Design Standards | JIS / BS / ASCE / Eurocode |
| Wind Load | Customized to project requirements |
| Snow Load | Customized to project requirements |
| Tilt Angle | Customized to meet project requirements |
| Warranty | 10 Years |
| Design Service Life | 25+ Years |
Product Features
Multiple Roof Attachment Options – Offers metal roof clamps and L-foot brackets for different roof profiles and installation requirements.
Rail-Based and Rail-Free Designs – Clamp configurations can be designed with mini rails or without conventional mounting rails.
Flexible Tilt Configurations – Supports roof-parallel installation, with optional adjustable rear legs or triangular structures for raised-angle applications.
Customized Structural Solutions – Mounting components and layouts can be adapted to roof profiles, structural conditions, and project requirements.
Adjustable Mounting Solutions
Adjustable Tilt Roof Mounting System
SR Solar’s Adjustable Tilt Roof Mounting System uses adjustable rear legs to change the inclination of solar modules according to project requirements. Installed in combination with suitable roof attachment components, such as metal roof clamps, L-feet, or tile roof hooks, the system allows modules to be mounted at different angles while maintaining a secure connection to the roof structure. It provides a flexible solution for projects where a roof-parallel installation does not offer the desired module orientation.
Adjustable Triangle Roof Mounting System
SR Solar’s Adjustable Triangle Roof Mounting System uses triangular support structures to elevate solar modules and provide the required installation angle. The triangle brackets are connected to suitable roof attachment components and can be configured according to roof conditions, module layout, and project requirements. This structure provides additional support beneath the modules and offers an alternative to conventional roof-parallel mounting configurations.
Accessories
Metal Roof Solar Mounting Solution
Metal Roof Solar Mounting System Project
Discuss Your Solar Mounting Project
Looking for a reliable ground mounting system for your next project? Share your requirements with our engineering team.
