N-type Solar Carport Mounting System
A reliable ground mounting solution using concrete foundations for commercial and utility-scale solar projects.
N-type Solar Carport Mounting System
Overview

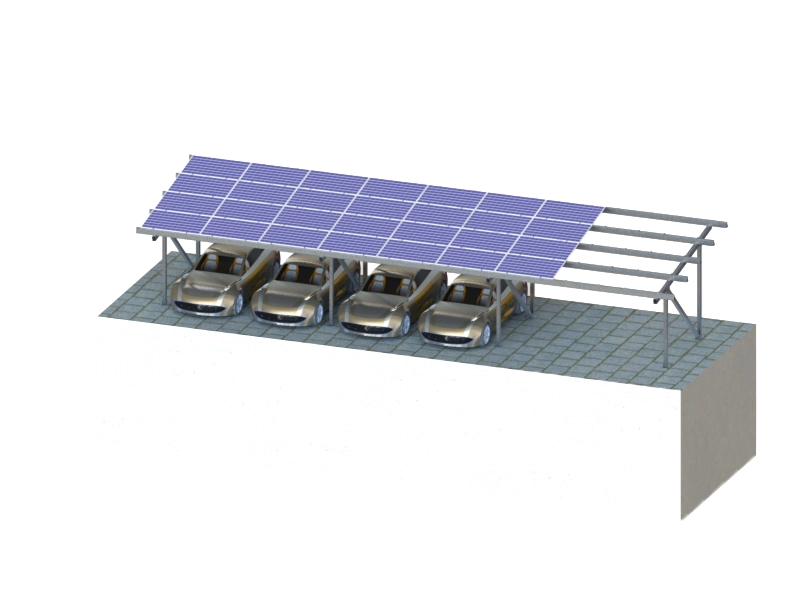

SR Solar’s N-Type Solar Carport Mounting System features an N-shaped support configuration with structural bracing to provide reliable support for solar carport installations. Its classic appearance and reinforced structural design offer a practical solution for commercial parking facilities. The system can be customized in terms of dimensions, materials, and structural configurations to accommodate different project layouts and loading requirements.
Customization Options
System Dimensions: Customized span, height, and structural dimensions.
Material Options: AL6005-T6 aluminum or S350GD steel.
Bracing Configuration: Customized bracing arrangements according to structural design.
Parking Layout: Customized according to available space and parking requirements.
Tilt Angle: Adjustable according to project requirements.
Project Requirements: Customized structural solutions based on site conditions and design specifications.
In-House Manufacturing
Engineering Support
Flexible Configurations
Installation Support
Product Parameters
| Material | Aluminum (AL6005-T6) / Steel (S350GD) |
|---|---|
| Surface Treatment | Anodizing / Hot-Dip Galvanizing / ZAM Coating |
| Design Standards | JIS / BS / ASCE / Eurocode |
| Wind Load | Customized to project requirements |
| Snow Load | Customized to project requirements |
| Warranty | 10 Years |
| Design Service Life | 25+ Years |
Product Features
1. Classic N-Type Design
Features an N-shaped support structure with a clean and practical appearance, suitable for various commercial solar carport applications.

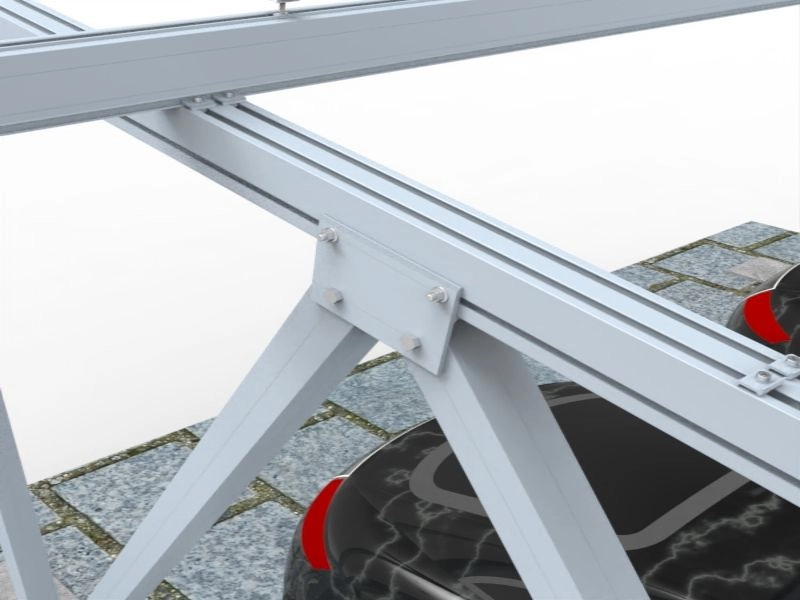

2. Reinforced Structural Stability
The inclusion of structural bracing helps improve overall rigidity and support performance under project-specific loading conditions.
3. Cost-Effective Solution
The practical structural arrangement provides a cost-conscious option for solar carport projects, depending on the design and material specifications.
4. Flexible Structural Design
Support dimensions, bracing configurations, and structural arrangements can be customized to meet different parking layouts and engineering requirements.

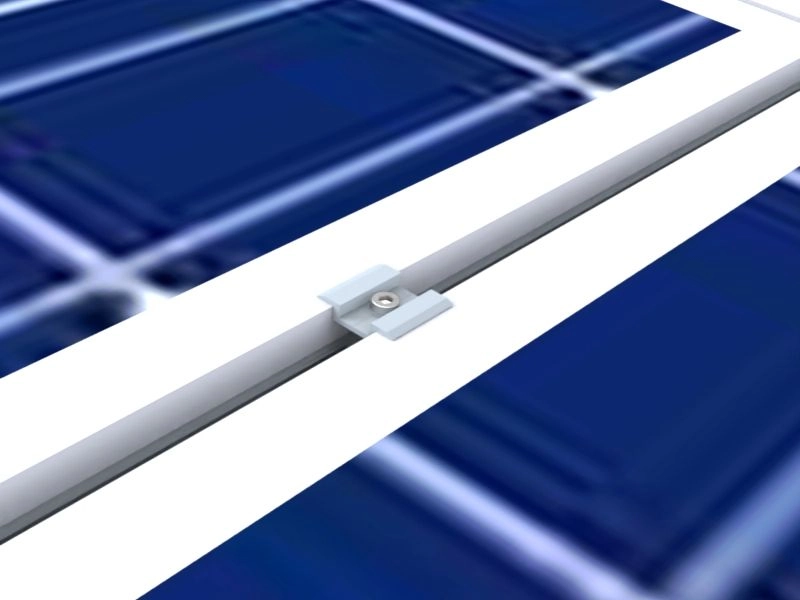

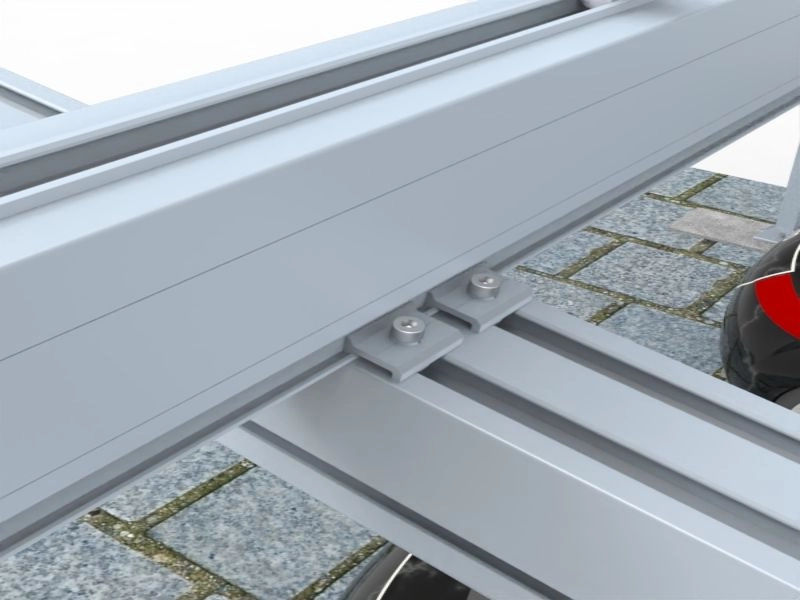

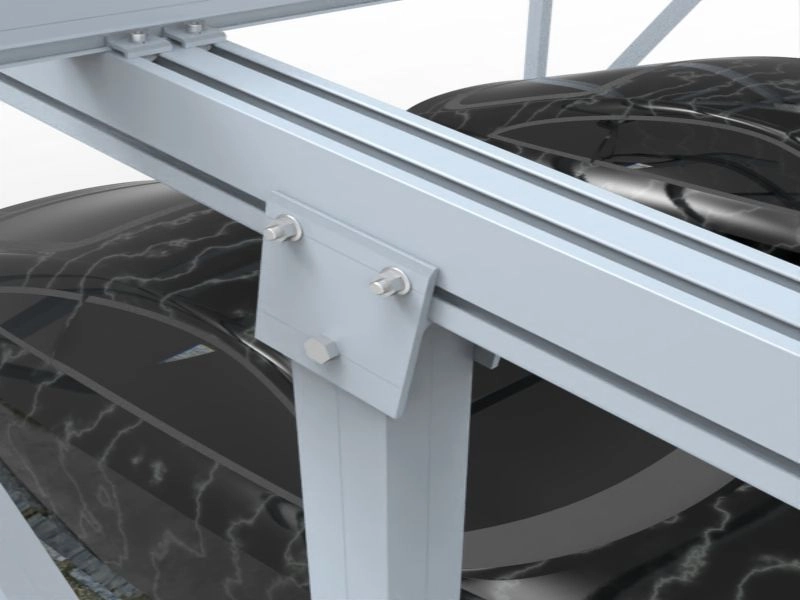

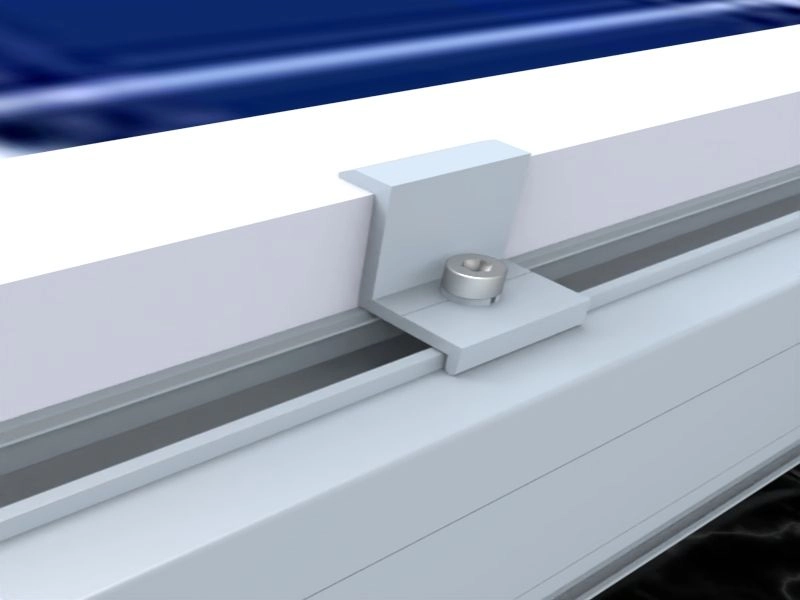

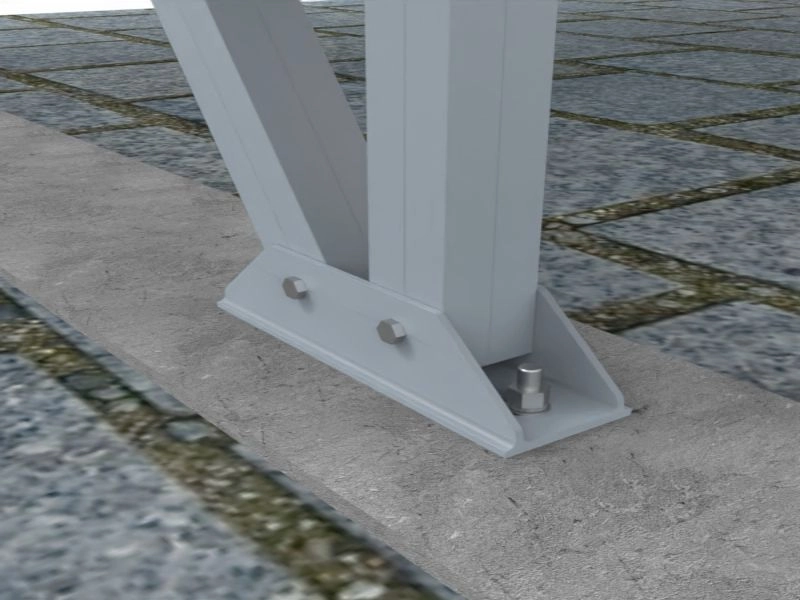

Product Details
Solar Carport Project Showcase
Discuss Your Solar Mounting Project
Looking for a reliable solar carport mounting system for your next project? Share your requirements with our engineering team.
