If you’ve ever stepped inside a shipping container in the middle of a Jebel Ali summer, you know exactly what a “metal oven” feels like. For EPCs and project developers in the UAE, these containerized shelters are the lifeblood of remote work sites, temporary housing, and logistics hubs. But powering them? That’s usually a noisy, expensive diesel-generator headache. At SR Solar, we see these sites differently. We don’t just see a row of containers; we see a massive, underutilized footprint waiting to be turned into a high-performance power plant. Integrating solar carport solutions for container shelters isn’t just about going green—it’s about structural survival and extreme operational efficiency in the harshest sun on the planet.
Why Container Shelters in the Emirates Need a “Solar Umbrella”
In the UAE, “standard” solar doesn’t always cut it. You need infrastructure that pulls double duty. Think of our solar carport as a “Solar Umbrella.” While the PV modules are busy soaking up those intense Arabian rays to generate kilowatt-hours, the structure itself is providing a critical thermal break for the containers below.
Beyond the Grid: Solving the Remote Site Power Struggle
Many of the projects we consult on are located in industrial zones or remote desert patches where the grid is either non-existent or frustratingly unstable. Relying on diesel means constant refueling logistics and maintenance costs that eat your O&M budget alive. By deploying solar carport solutions for container shelters, you’re creating a localized microgrid. Whether you’re running a 500 kW array for a worker village or a smaller 200 kW setup for a field office, the ability to generate power exactly where it’s consumed is a game-changer for project bankability.
The Thermal Shield: Slashing HVAC Loads by 30%
Here’s a “real-life vibe” for you: air conditioning usually accounts for over 60% of the energy consumption in UAE container shelters. When the sun beats directly onto the corrugated steel of a container, the internal temperature can skyrocket past 55°C. By hovering a solar canopy just a few feet above the roof, you create a ventilated air gap. Our internal data suggests this “shade effect” can reduce the cooling load by nearly 30%. You aren’t just making energy; you’re making sure you don’t need as much of it in the first place. Isn’t that the smartest way to design?
Engineering for the Desert: Structural Resilience and Materials
We don’t play around when it comes to the UAE’s climate. Between the Shamal winds and the salt-heavy air near the coast, your mounting structure is under constant attack. If your “solution” involves flimsy rails, it won’t last two seasons.
High Wind Loads: Designing for 160 km/h Gusts (ASCE 7-22)
Wind in the desert is unpredictable. One minute it’s a breeze, the next it’s a localized sandstorm with vertical uplift forces that can rip panels right off the mounts. At SR Solar, our solar carport solutions for container shelters are engineered to $ASCE 7-22$ standards. We design for wind speeds up to 160 km/h. We run rigorous 3D simulations to ensure that the “sail effect” of a large carport canopy won’t compromise the stability of the containers it’s attached to.
AL6005-T5 Aluminum vs. Hot-Dip Galvanized Steel: Which Wins in the UAE?
This is the age-old debate in our engineering office. For most solar carport solutions for container shelters, we lean toward AL6005-T5 Aluminum with an anodized finish. Why? Because it’s incredibly lightweight—which matters if you’re mounting directly to container corners—and it forms a natural oxide layer that laughs at coastal humidity. However, for massive spans where cost-per-kilogram is the priority, we utilize Hot-Dip Galvanized Steel (Mac Steel). It offers that sacrificial zinc layer that is essential for preventing “red rust” in industrial zones like ICAD or KIZAD.
Customizing Mounts for Standard 20ft and 40ft ISO Containers
One size definitely does not fit all. Are your containers stacked? Are they spaced 5 meters apart for ventilation? The beauty of our modular system is the adaptability.

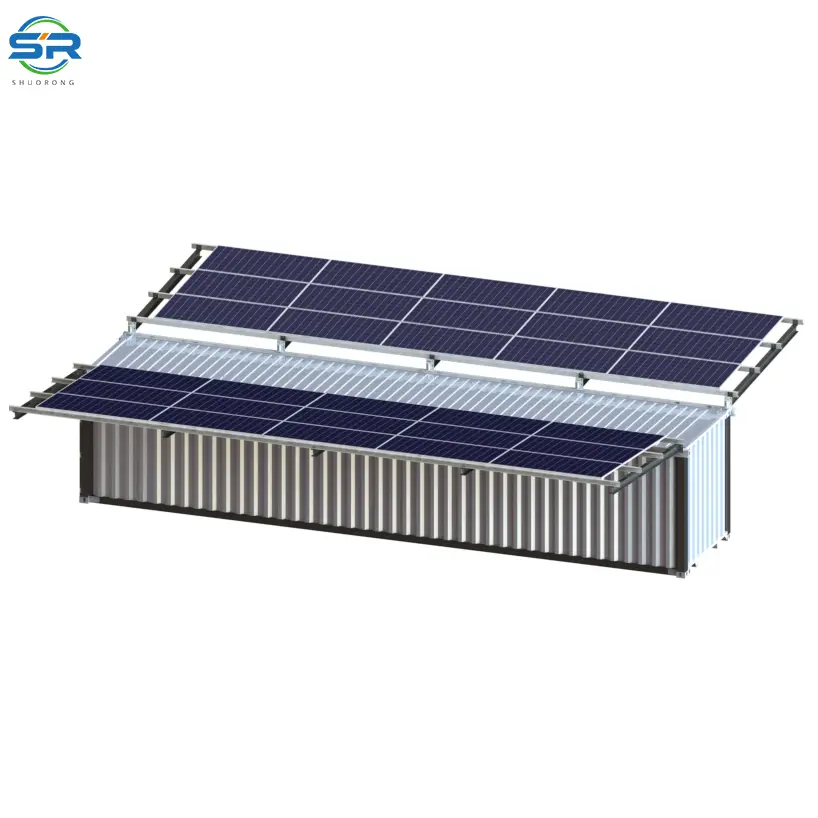

Cantilever vs. Dual-Post: Maximizing Span and Space
If you’re tight on space, our Cantilever design is a lifesaver. It uses a single row of supports, allowing for unobstructed movement of vehicles or equipment between the containers. On the other hand, for a 1 MW+ worker camp where you have long rows of housing, our “Dual-Post” Π-shape (Pi-shape) provides the ultimate structural span. This allows us to cover two rows of containers with a single, massive solar roof, maximizing your PV density and minimizing the number of foundation points.
Foundation Versatility: Chemical Anchors and Helical Piles
What are you sitting on? If it’s a pre-poured concrete slab, we use high-strength chemical anchors to tie the carport structure into the existing mass. But if you’re out in the dunes of the Empty Quarter, we might suggest helical screw piles. They go deep into the sand to provide the necessary pull-out resistance without the need for massive concrete trucks—a logistical nightmare in remote areas.
B2B Efficiency: Reducing “Soft Costs” through Pre-Assembly
We know that for EPCs, time is literally money. Labor in the UAE can be expensive, especially when you factor in site permits, transport, and the sheer difficulty of working in the heat.
Minimizing On-Site Labor in Remote Industrial Zones
Our kits arrive at your site in a “Lego-like” state. We maximize pre-assembly in our factory so that your team spends less time measuring and more time tightening bolts. When you’re trying to hit a tight commissioning deadline for a developer, those saved days are pure profit.
Navigating UAE Regulations: DEWA Shams Dubai & Beyond
If your project is in Dubai, you’re playing by the Shams Dubai rules. This means every component—from the modules to the mounting rails—needs to be pre-qualified. SR Solar ensures that our solar carport solutions for container shelters meet these stringent standards. Keep in mind that DEWA now limits plot capacity to 2,080 kW. If you’re designing a massive logistics park, you might need to partition the system. It’s these little regulatory “traps” where our expertise saves you from a permit rejection.
Why SR Solar is the Trusted Backbone for Your PV Projects
We don’t just ship hardware and wish you luck. We act as your outsourced engineering department. When you partner with SR, you get:
- Bankable Materials: Certified alloys and coatings that satisfy UAE municipal inspections.
- 3D Structural Simulations: We show you exactly how the wind will move around your container shelters.
- BOM Optimization: We don’t over-engineer to pad the bill; we optimize to win the tender.
Conclusion: Future-Proofing UAE’s Industrial Infrastructure
The UAE is moving fast toward its Net Zero 2050 goals, and the industrial sector is under the microscope. Integrating solar carport solutions for container shelters is the lowest-hanging fruit for any project developer. You solve the cooling problem, you solve the power problem, and you do it all using space that was previously just absorbing heat. It’s smart, it’s durable, and it’s exactly what the desert demands.
FAQs
1. Can the solar carport be moved if the container shelter is relocated?
Absolutely. One of the biggest advantages of our modular system is that it’s bolt-together. If your temporary work site moves in two years, you can dismantle the carport and reassemble it at the new location without losing structural integrity.
2. How do you prevent sand accumulation on the panels in the UAE?
Great question—sand is the enemy of yield. We design our carport canopies with a specific tilt (usually between 5° and 10°) to allow for “self-cleaning” during rare rain events and to make manual cleaning access easier for your O&M team.
3. Is it possible to integrate EV charging into these carports?
Yes, and we highly recommend it. Since the structure is already there, adding Level 2 or DC Fast Chargers is a simple addition. This is becoming a standard requirement for “Green” industrial parks in the UAE.
4. Will the carport structure interfere with container crane operations?
We design with clearances in mind. If your site requires container swapping or heavy lifting, we utilize a wide-span П-shape design that stays clear of the container’s “pick zones” and provides enough vertical clearance for standard reach stackers.
5. Does the shade really make that much of a difference for the AC?
It’s massive. Metal containers are excellent conductors. By preventing the sun from ever hitting the roof, you’re removing the primary source of radiant heat. It’s the difference between the AC running at 100% all day versus cycling efficiently.
